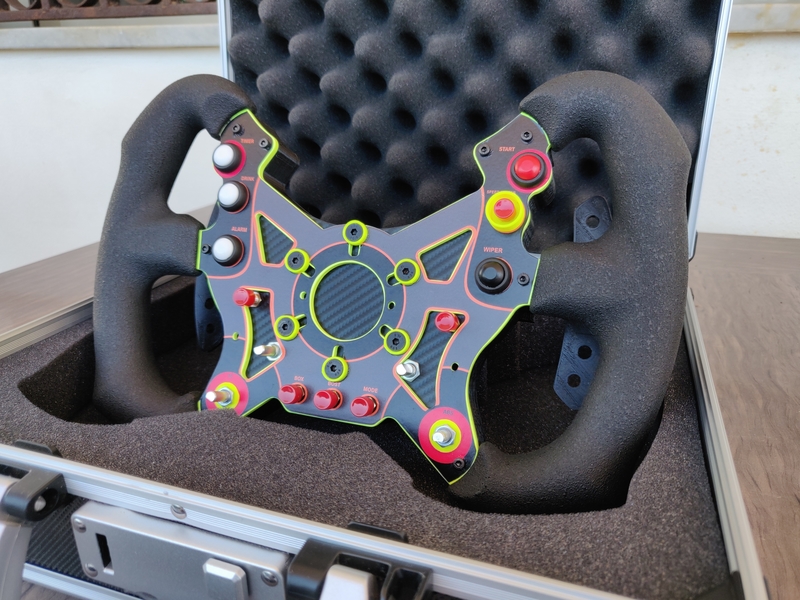

DIY DimSim R1 Enclosure with Magnetic Paddle Shifters
YouTube showcase video: https://www.youtube.com/watch?v=vlshnB7oAQk&t=15s
Files included:
- Main Body
- Backplate
- Pit Limiter Button Guard
- Rotary Encoders 13mm Adapter
- M5 Countersunk Washers
- Shifter - Main Body
- Shifter - Lever
- Shifter - Paddle
Minimum Print Settings:
- 0.2 Layer
- 60%+ Infill
PARTS REQUIRED FOR ASSEMBLY:
- DimSim R1 Steering Wheel from here: https://www.ebay.it/itm/DimSim-Steering-Wheel-R1/183784911114
- 40mm M5 Countersunk Screws
- 30mm M3 Hexagonal Socket Head Cap Screws
- 13mm Waterproof Push Buttons
- 6.5mm NKK-clone Momentary Push Buttons
- 7mm Rotary Encoders
- M3 Nuts
- Carbon Vinyl
PARTS REQUIRED FOR PADDLE SHIFTERS
- 12x2mm Neodimium Magnets
- Micro Lever Switches AC 125 1A
- 10mm M3 Hexagonal Socket Head Cap Screws
- 30mm M3 Hexagonal Socket Head Cap Screws
FOR PERSONAL USE ONLY - NON COMMERCIAL - NOT FOR RESALE
COPYRIGHT FOX SIMRACING HARDWARE 2019 - ALL RIGHTS RESERVED
You cannot sell the digital model, a derivative or adaptation of the model, nor can you sell prints of the model.
