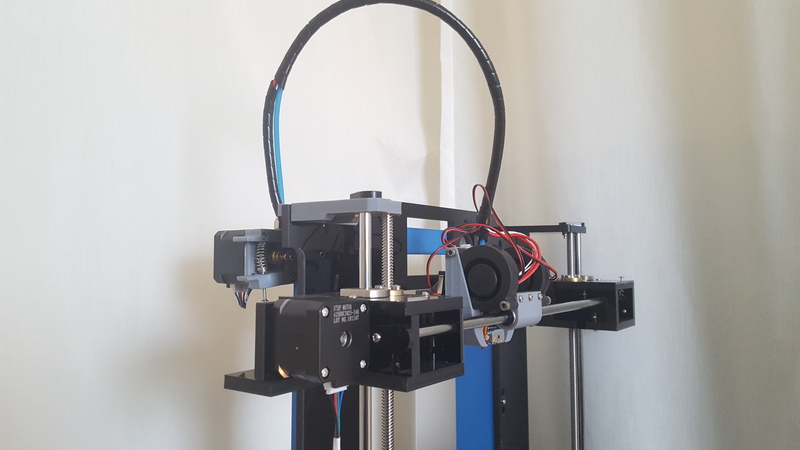

Another Anet A6 Hot End / X car modification for a new printer. The aim is ABS, PET-G and PLA printing. With this setup it is possible to use an hot en with an heat break like the E3Ds. The Extruder sits on the back on the printer frame now. Connected with an PTFE tube to the new X car/Hot end setup. And indeed, the blue parts are also not original. I made that of scrap metal to make the printer less fragile

For this printer it possible to tighten the X and Y timing belt. The parts for the X axis are included. Not for the Y axis because it does not work on an original Anet. If somebody wants those files let me know :-).

The Hot-end has Heat Break dimensions of: diameter 22.5mm x 26mm, but other with diameters up to 25mm should also fit.

The Heat Break out is made out of aluminum and the heater and heater block that came with the Anet Printer is used.

For cooling of the printed part 2 Snail House Fans are used. One already came with the Anet printer itself. For these fans are 4 different Fan-ducts available. They have four different lengths I needed for my printers. Please see included Screen-Shot included with the photos. The ones I used for this example are “snail house fan duct 28.35mm L.stl & snail house fan duct 28.35mm R.stl”.

The four M4 allen key bolts that hold these fans are screwed into the “to small holes”, so they make their own threats.

The Extruder is just a standard direct drive design. The PTFE tube coupler is screwed in a to small hole. This way it taps it own threats. I left the hole to small so you can drill it out to the direct diameter and/or tap the treats you need. I know the lever looks very ugly :-) see photos. But it works for now :-)

parts also needed for the Extruder:

• Spring from Anet

• Nema 17 motor from Anet

• Filament driver gear and push bearing from Anet

• M3x6mm from Anet

• 2X M3x18mm from Anet

• M3x20mm & nut from Anet

• M4x14mm and nut from Anet

• M5x6mm I had laying around (for tensioning the spring)

• PTFE Tube (1Meter) and 2 couplers (Pneufit) I had to buy...

parts also needed for the X car & Hot End setup

• E3D Hot End or Clone

• 30x30mm fan and Hot End bracket

• Linear Bearings from Anet

• 1 Snail-House fan from Anet and one I had to buy...

• 3x M3x10mm & nuts from Anet

• 3x M3x12mm & nuts from Anet

• 4x M4x20mm Bolt & nuts from Anet

• 2x M4x40mm Bolt & nuts I had laying around

Let me know if you have any questions and also comment in case I forgot something :-)
