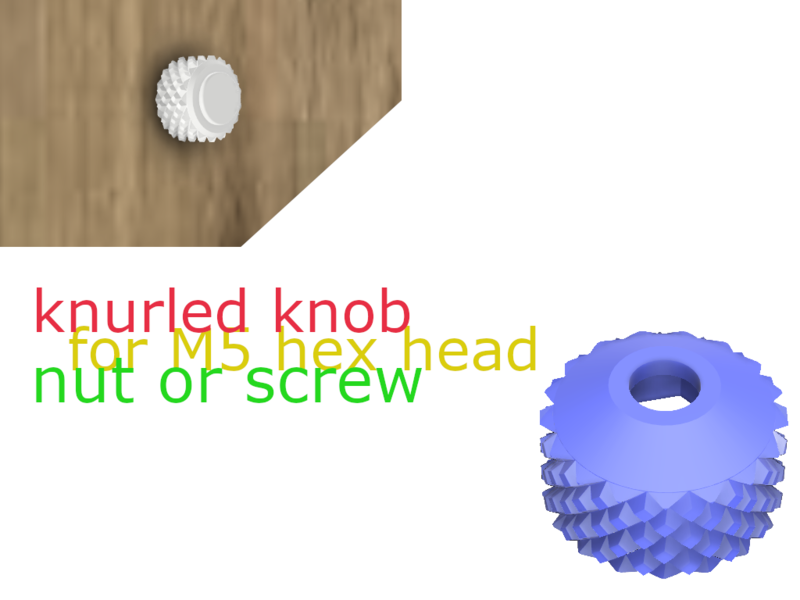

This knurled knob is suited for M5 nuts or hex head screws. So you can screw everthing tight, without any tools. The Nut or the hex head is secured with a counterpart.
Dimensions Height: 13mm Outer Diamenter: 18mm
Printing Parameters
Support Yes
Print Speed 50mm/s
Infill 20%
Travel-Speed 100 mm/s
Nozzle-Temp 210 °C
Build plate Temp. 60°C
Layer Resolution 0,1 mm
Nozzle Diameter 0,4 mm
Print Time 31 min
Filament PLA Orange
Amount of Filament 2g
Used Printer Anycubic i3 Mega
Loading prints...
knurled knob for M5 hex head screw/nut
Creative Commons Attribution
You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.
Licensed under CC BY
Files Included
2 downloadable files:
