The cover should sit tight on your nut. If for some reason it fit to tight or is to loose, you might need to scale it for your needs.
Dimensions:
Height: 11mm
Outer Diameter: 15mm
Inner Polygon for the Nut between two flat sides: 7,9mm
_______________________________________________________________________
Printing Parameters
Support Yes
Print Speed 50mm/s
Infill 20%
Travel-Speed 100 mm/s
Nozzle-Temp 210 °C
Build plate Temp. 60°C
Layer Resolution 0,1 mm
Nozzle Diameter 0,4 mm
Print Time 15 min
Filament PLA Orange
Amount of Filament 1,2g
Used Printer Anycubic i3 Mega
Loading prints...

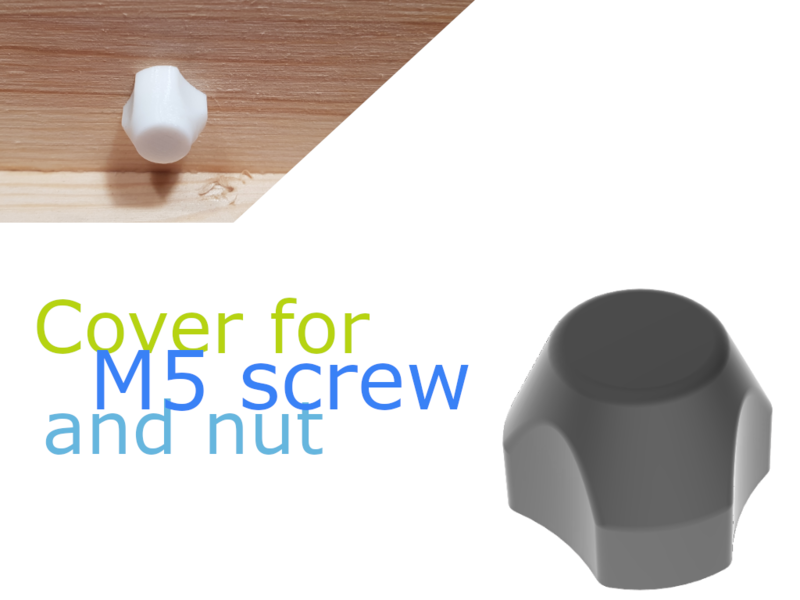

nut/screw-cover for M5
Creative Commons Attribution
You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.
Licensed under CC BY
