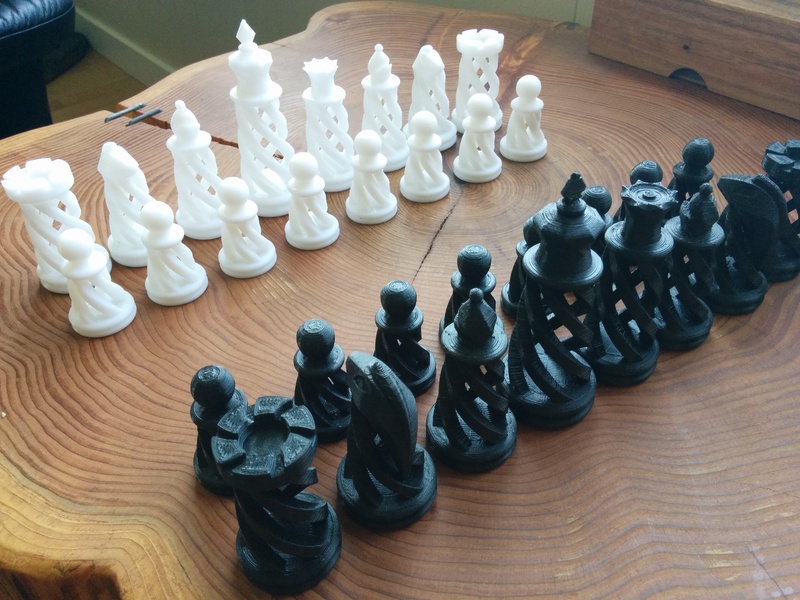

A spiral themed chess set that can be printed without supports. I modeled and rendered this using SolidWorks. Any criticism is welcome and appreciated.
This has been a project I have been working on since I first got my printer. I wanted to develop something that could not be manufactured by any other process other than 3D Printing. I also wanted to make sure that the design was possible to print without the help of supports, as I have found that do not have the patience to deal with them. The most challenging piece to design was definitely the Knight, but I am quite happy with how they all turned out!
The pieces are quite large, so I suggest printing at ~75% scale for most boards. I printed my pieces on a Makerfarm 8" Prusa i3v in PLA @ 0.2mm layer height. Each piece took a while but it was definitely worth the effort. Enjoy!
Loading prints...
Spiral Chess Set (Large)
Creative Commons Attribution-NonCommercial-ShareAlike
You can distribute, remix, adapt, and build upon the material in any medium or format for noncommercial purposes only, with attribution and under the same license.
Licensed under CC BY-NC-SA
Files Included
6 downloadable files:
Downloaded: 16350 times
