These are the plastic parts required to build BORIS the Biped
Visit https://www.instructables.com/... for more information
All the parts have been test printed on the Creality Ender 3
Material: PETG
Layer Height: 0.3mm
Infill: 15%
Nozzle diameter: 0.4mm
The parts list for BORIS is as follows:
- 1x BODY BOTTOM
- 1x BODY MIDDLE
- 1x BODY FRONT
- 1x BODY REAR
- 2x BODY RECTANGLES
- 4x BODY SQUARE PINS
- 1x ELECTRONICS FRAME
- 1x ELECTRONICS PIN
- 1x OLED FRAME
- 2x FEET
- 2x ANKLES
- 2x LEG 1
- 2x LEG 2
- 2x PISTON CASES
- 2x PISTON CASES (Mirror)
- 4x PISTON HOLDERS
- 4x PISTONS
- 2x HIPS
- 8x CIRCULAR PIN L1
- 2x CIRCULAR PIN L2
- 2x CIRCULAR PIN L3
- 10x CIRCULAR PIN L4
- 16x SQUARE CLIP
- 22x CIRCULAR CLIP
Each part can either be printed as a group or individually.
For Group printing all you have to do is print one of every single GROUP.stl file apart from the Group LEG 1.stl, file and the GROUP CIRCULAR PIN.stl files of which you have to choose one of them and you will have the entire set of parts required.
Follow the following Steps for printing all the STL files.
And there we have it about 2 days of printing later you should have all of BORIS's Plastic parts
Loading prints...

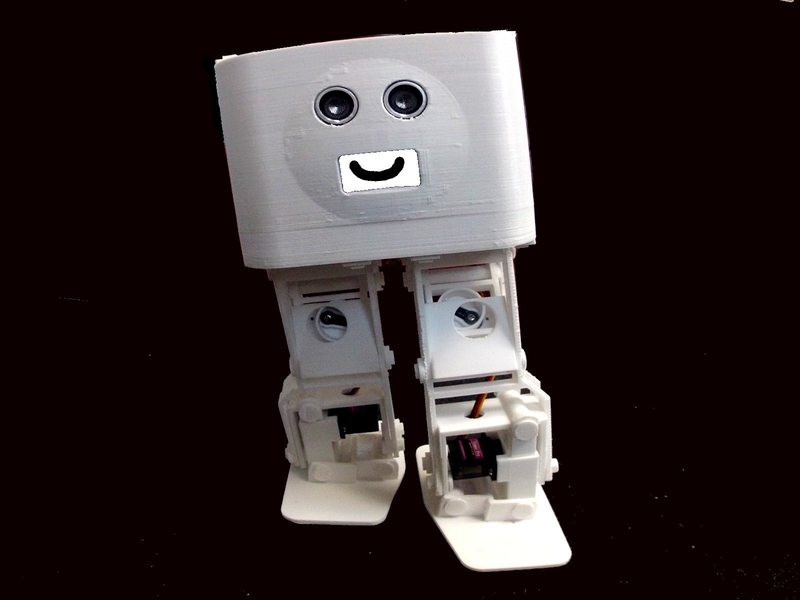

BORIS the Biped for Beginners and Beyond
Creative Commons Attribution-NonCommercial-NoDerivatives
You can download and share as long as you credit the creator, but you cannot change the material or use it for commercial purposes.
Licensed under CC BY-NC-ND
