All parts in STL here: https://www.redpah.com/product/4583
Box can be used to open or close indipendent electric contacts (eg. low voltage).
Simple additional items (change relay for different voltage): 1x RT424730 Relay electromagnetic DPDT 8A/250VAC (https://www.ebay.it/itm/221884524443) 2 and 3 pin 5.08mm Pitch PCB Mount Screw Terminal Block amazon (.com .it .de .co.uk .fr) B00SWONXEQ - B00SWOL5XW
Loading prints...

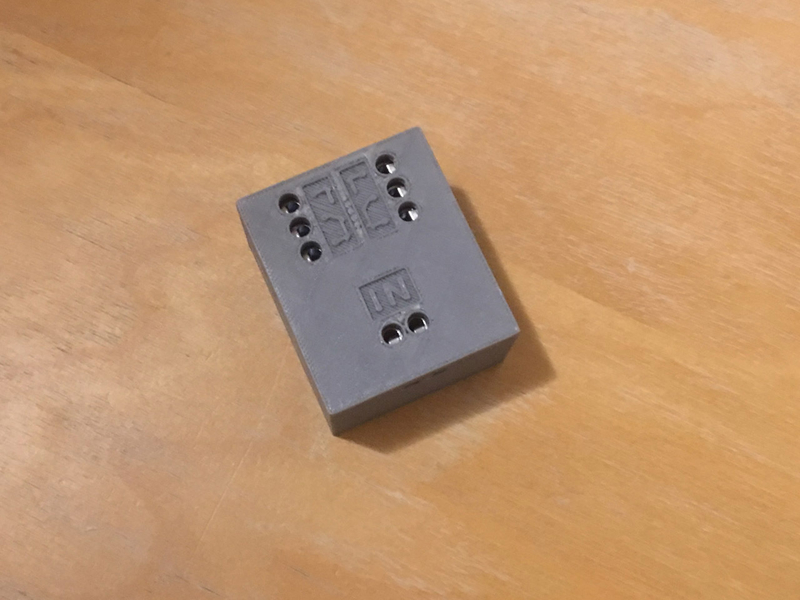

Mini relay box - 2 sets of independent NC/NO contacts
