AstroX J5 frame JohnnyFPV VTX antenna BN220 Xiaomi Yi mount
Free

Hi all

These are my humble works to use with my drone and I want to share them with you.

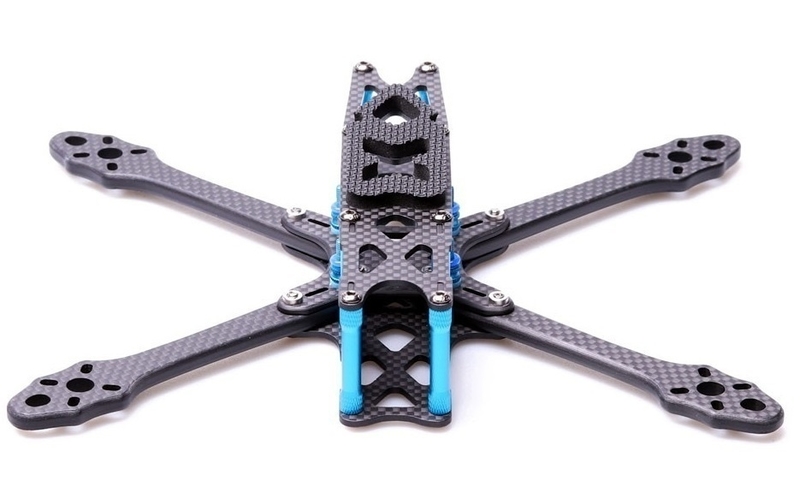

They work great with SMA, UFL, MMCX antennas, 2.4 GHz receiver antennas, Beitian BN220 GPS, and Xiaomi Yi action camera.

They were tested on my Aliexpress clone frame.

I recommend print the antenna mounts with TPU.

Print them with 103% scale if shrinkage matters especially the Xiaomi Yi mount.

Thanks.
