Hi, the site stop to work as a shop, if you are interest, you can find the model here: CGTrader Shop https://www.cgtrader.com/3d-pr...

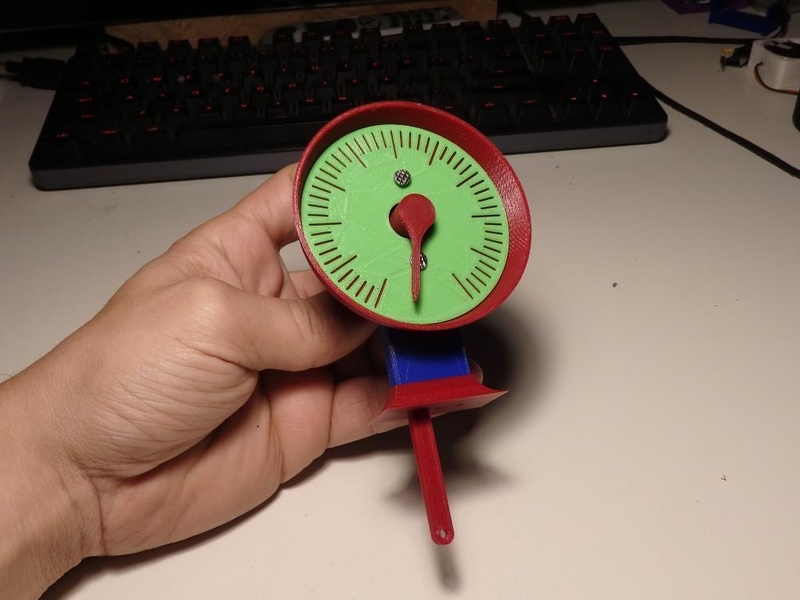

Hi, this is a circular graduated indicator. The 20mm linear movement is transposed on a graduated scale from 0 to 10. There are 50 total divisions. Each division corresponds to 0.4mm of bracket movement. Optimized for 0.4mm nozzle.
In this video you see the assembly and more details
Loading prints...
Generic gauge - linear to circular graduate scale
1
like
1
collection
Payment system coming soon!
Creative Commons Public Domain
The creator has waived all rights to the work. You can copy, modify, distribute and perform the work, even for commercial purposes, without asking permission.
Licensed under CC0
Files Included
9 downloadable files:
