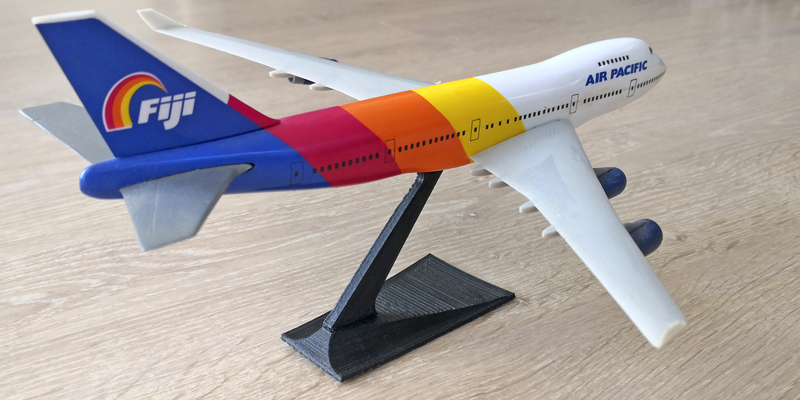

A simple slot together stand for model aircraft. Ours was lost so this was a replacement designed to suit the pictured model.
Fitting the two pieces together is tight, you may need to shave off a little plastic with a file or knife depending on your print quality, but this ensures that you won’t need any glue, and it should hold a good amount of weight without wobbling. The critical dimensions you may be interested in are the size of the stand tip that slots into the aircraft: It measures 6.0mm long (front to back direction of aircraft), 2.3mm wide (wing to wing direction), and 6.0mm tall as pictured.
Please feel free to make modifications to this design to suit your needs.
Full details about this project on my blog https://edditiveblog.wordpress.com/2020/01/24/3d-printed-model-aircraft-stand/
