Chevy Camaro LS3 V8 Engine - Scale Working Model
Free
Chevy Camaro LS3 V8 Engine - Scale Working Model - Thumbnail 1 Chevy Camaro LS3 V8 Engine - Scale Working Model - Thumbnail 2 Chevy Camaro LS3 V8 Engine - Scale Working Model - Thumbnail 3 Chevy Camaro LS3 V8 Engine - Scale Working Model - Thumbnail 4

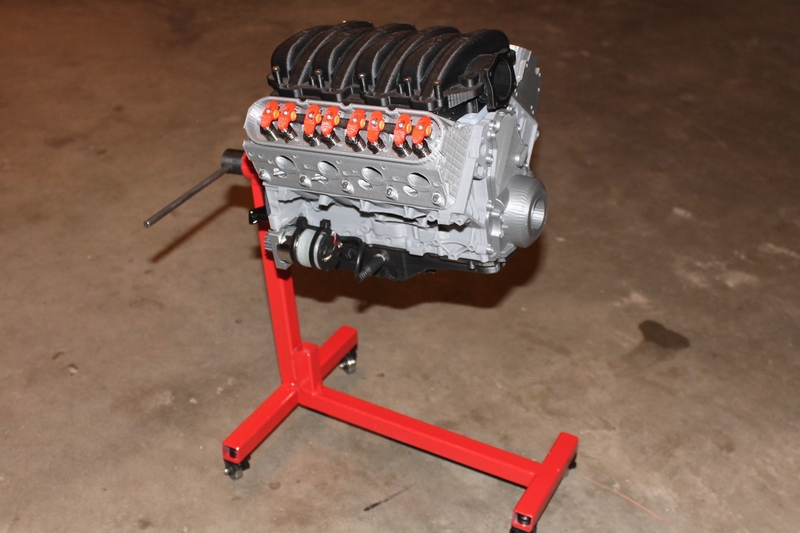

Working model of a Chevy Camaro LS3 V8 engine.

Over 200 hours of printing!!! Engine block alone was 72 hours. Modeled from cad files, pictures, specs, and service diagrams of the engine. I did not have the actual engine for this one. It assembles just like the real thing!!!

Complete hardware kits available. They include all Non-Printed parts.

https://www.makerrx.com/products/mrx1

Kits include all non printed parts, 500 rpm dc motor, speed controller, power connectors, and DC power supply.

https://youtu.be/iAkzb1nXzwU
