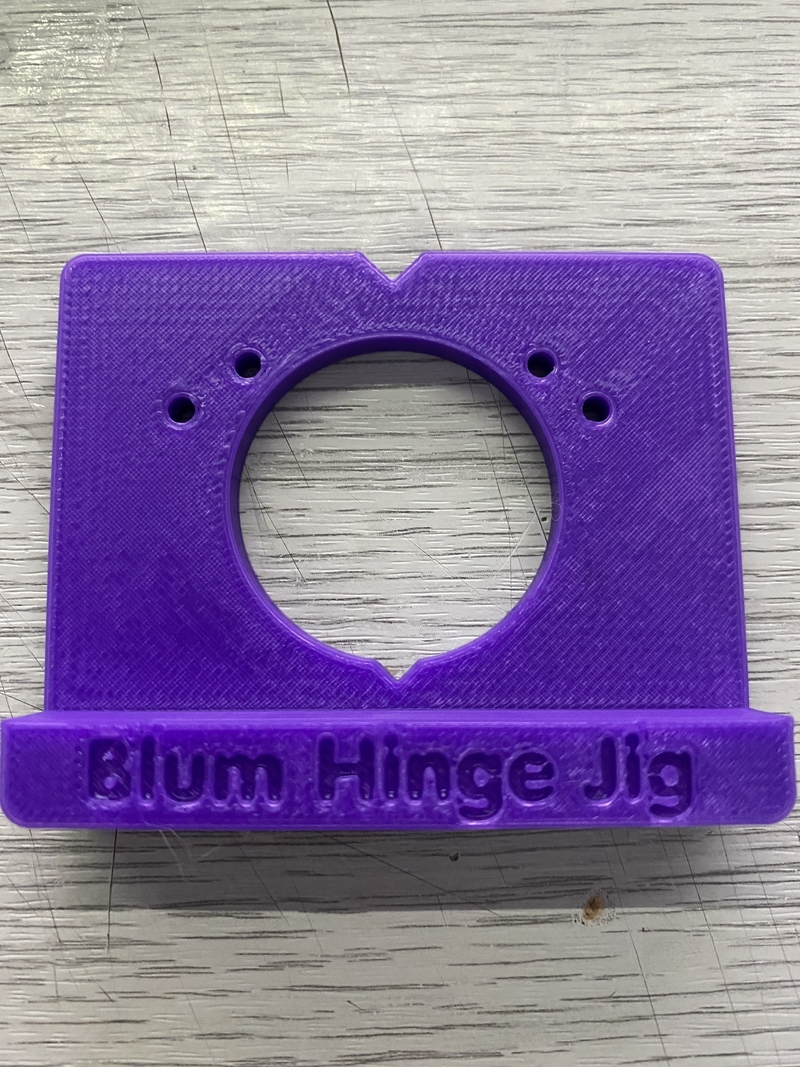

I've created a jig for Blum "Euro style" hinges. I couldn't find one I liked for Blum, so created one. I've tried to make as idiot proof as I can - once flipped over on the edge of the door, it's marked out for which set of holes to use for the hinge or bracket. Use the large to drill the 35mm / 13mm deep hole with a Forstner bit, then drill pilot hole for the hinge holes. Copy the line on the cabinet and use the bracket holes.
Printed here with 50% infill and no supports needed. I used Simplify 3D to slice it and printed it on a Flashforge Creator Pro.
