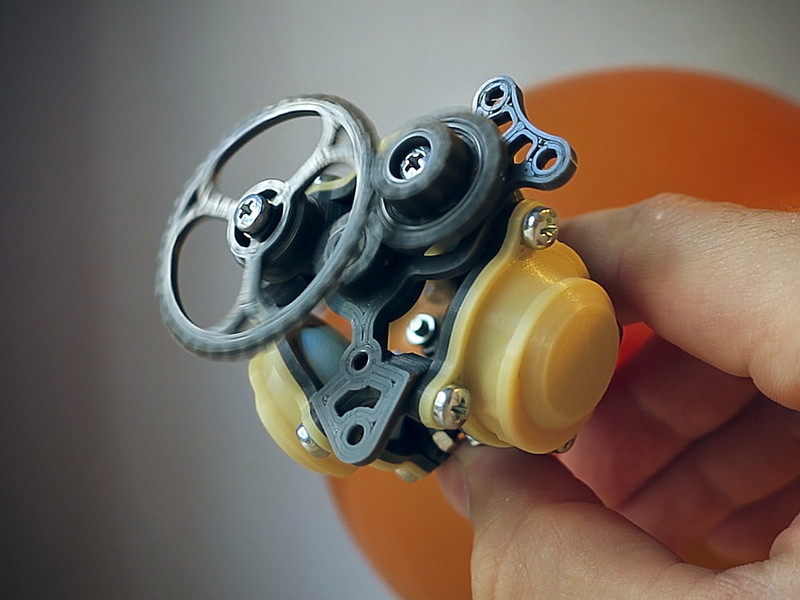

Balloon Powered Radial Engine
Free

Run by just blowing air into it. Demonstration:

Exploded view in 3d viewer: https://skfb.ly/6LQBR

If you like how it works, you can support me by purchasing the Pneumobile Chassis.

Extra parts needed:

  • M3x8 Bolts (x15)
  • M3 Nuts (x15)
  • Thin Nitrile Glove (thumbs from M sized gloves worked the best) or Silicon (worse) or PET (not tested) ones

Optional parts:

  • M3x12 or longer bolts (2x)(for the gears)
  • M3 Nuts (x2)(for the gears)
  • 6x4mm Silicon Pipe (can be found in aquarium shops)
  • M5x10mm Washers (x2) (instead of printed ones)
  • 105ZZ Bearings (x2) (noticed no difference in performance)
  • Printed well with 0.6 nozzle at 0.2 layer height. Some parts (Cylider_Back_Lid and Valve_Lid_6mm) need supports. After printing cut away the brims from Cylinder_Ring parts.

Printed well in PLA  with 0.6 nozzle at 0.2 layer height. Parts with "_support" in their names will print a bit prettier with supports. Parts with "X_" in their names are optional.

Assembly:

  • Use 3d diagram as a guide: https://skfb.ly/6LQBR
  • Cut off a glove finger tip (thumbs from M sized glove worked well)
  • Pull it onto a Cylinder_Ring (Use Helper_Finger to leave enough height)
  • Connect a Piston to it with two Washers
  • Clamp the Cylinder_Ring between Cylinder_Plate and and Cylinder_Lid
  • Clip them with Helper_Clamp so they won't fall apart at once
  • Bolt them together to Plate_Top
  • Repeat for the other 2 cylinders
  • Insert th Crank with 2 Washers
  • Fix it in place with Frame_Bottom
  • Bolt all the parts together
  • Put the Valve_Inner in place
  • Bolt the Valve_Lid into place
  • The engine should be running!

Troubleshooting:

  • Rotated freely by hand, but struggling when working - the inner valve may have too much friction against the frame (sanding the valve and the frame may help for a while).
  • Jams on a certain cylinder - this glove finger may need a bit more slack.
  • Isn't rotated freely by hand - gears bolted too tightly to frame (should have a bit of play), some gear teeth didn't print very well, or the whole gear printed with "elephant foot" and runs too tight with another gear.
