It was always difficult for me to sharpen a drill with a diameter of less than 3 mm. Most of the available tools for sharpening drills are not designed for this, and manual sharpening was not always obtained. Sharpening drills with a diameter of less than 1 mm did not work at all.

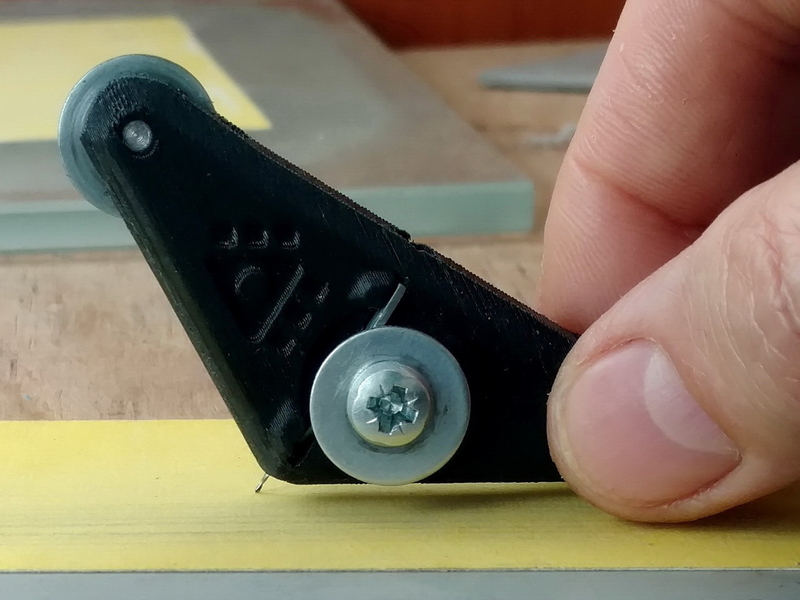

Once I came across a description of a little-known tool Wishbone for sharpening small drills and I decided to do something similar, but suitable for manufacturing on an FDM printer. The result is Wishbone 2. This tool allows you to quickly and efficiently sharpen drills with a diameter of 4 mm to 0.5 mm without any special skill.
Made using 3D printing on an FDM printer, easy to assemble, inexpensive.
The work of Wishbone 2 is shown in the video:
Assembly instructions are in the PDF document.
Loading prints...
Wishbon 2 - A Tool for Sharpening Small Drill Bits
Creative Commons Attribution
You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.
Licensed under CC BY
