Model dimensions:
- length – 538.7 mm
- height – 152 mm
- width – 60.8 mm
Model consists of parts: barrel part 1, barrel part 2, body, bottom insert, cartridge front insert 1, cartridge front insert 2, cartridge front part 1, cartridge front part 2, cartridge rear insert 1, cartridge rear insert 2, cartridge rear part 1, cartridge rear part 2, cartridge rear ring 1, cartridge rear ring 2, front handle, guard, handle, pin, top insert, top lever, trigger 1, trigger 2.
Detail Pin need to with diameter 4 mm and from metal.
During assembly, use guiding rods with d=4mm.
Also use 2 magnets with diameter 9.5 mm and thickness 1.5 mm to fix gun in the closed position.
Loading prints...

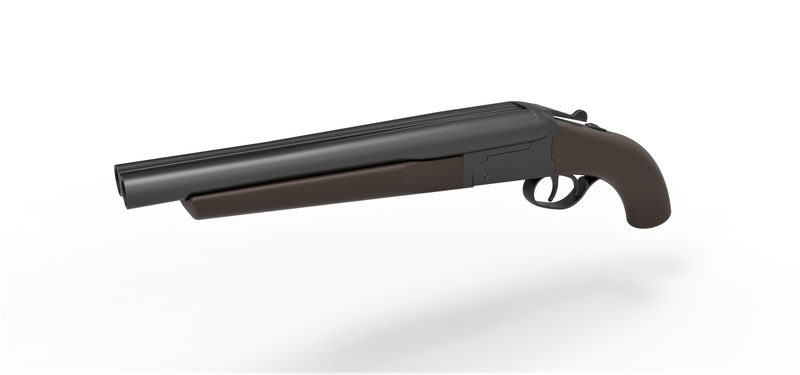

Double Barreled Remington Shotgun
Creative Commons Attribution
You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.
Licensed under CC BY
