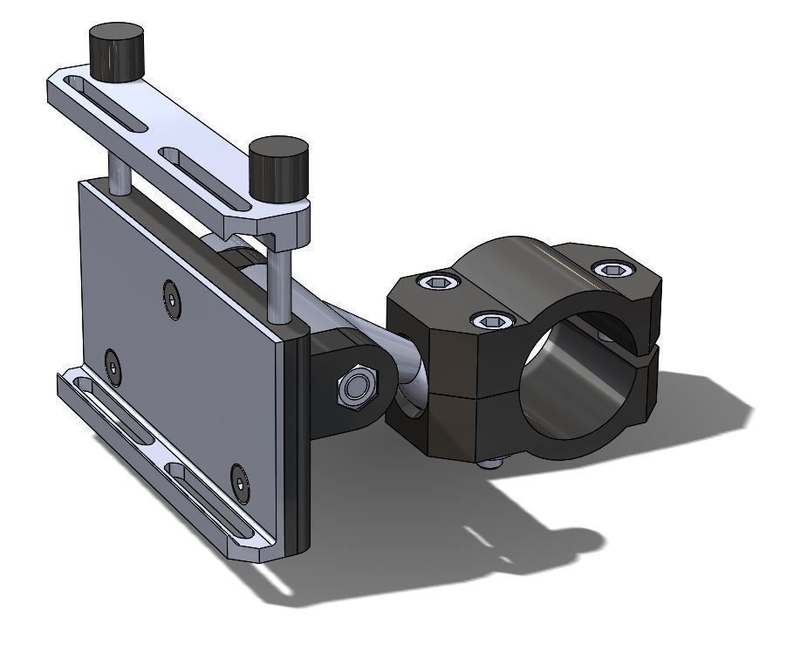

This new project has been created to realize an easily mountable smartphone or GPS navigator support for the handlebars of any mountain bike or motorcycle. Thanks to its 31.8 mm diameter fastening, the support can be mounted on most standard handlebars available on the market, both on the handlebar (horizontal) and on the front stem (vertical). The minimum width of the smartphone stand is 50mm and is adjustable up to a maximum width of 80mm for phones up to 6.0". The files are in STL and STEP format and are ready to be printed in plastic with any 3D printer.
The downloadable plastic kit includes 8 files:
Bar Holder Bottom
Bar Holder Top
Main Holder Bottom
Main Holder Top
Middle Knob
Middle Support
Sphere Holder
Top Knob
Once you download and print the plastic parts, you need the following mechanical components to assemble the complete support:
No.3 hexagon socket head screw M6x30 mm
No.4 nut M6
No.1 hexagon head Scr
ew M6x65 mm
No.2 hexagon head screw M5x50
No.3 countersunk screw M4x8mm
No.3 nut M4
