Anet A8 linear Rail Update This is one of the most usefull thing to do in your Anet A8, because many things:
- The improvement of the layer due to vibrations.
- The lower noise when the rail move.
- The structural improvement.
- Increase the printing speed.
All the parts were designed in solidworks 2018, upload in this page. But if you need another type of file tell me and I will try to help you.
Parts:
1xLinear Rail 350mm MGN12H https://www.aliexpress.com/item/32806622073.html?spm=a2g0s.9042311.0.0.274263c0RXo8bT
1x2020 Aluminum Profile https://www.aliexpress.com/item/32813616949.html?spm=a2g0s.9042311.0.0.391b63c0YlSumu
8xNut Fasten Connector 2020 Aluminum Extrusion https://www.aliexpress.com/item/32814359094.html?spm=a2g0s.9042311.0.0.274263c0RXo8bT
8xM3x6mm Alloy Steel Screws https://www.aliexpress.com/item/4000027503852.html?spm=a2g0s.9042311.0.0.274263c0RXo8bT

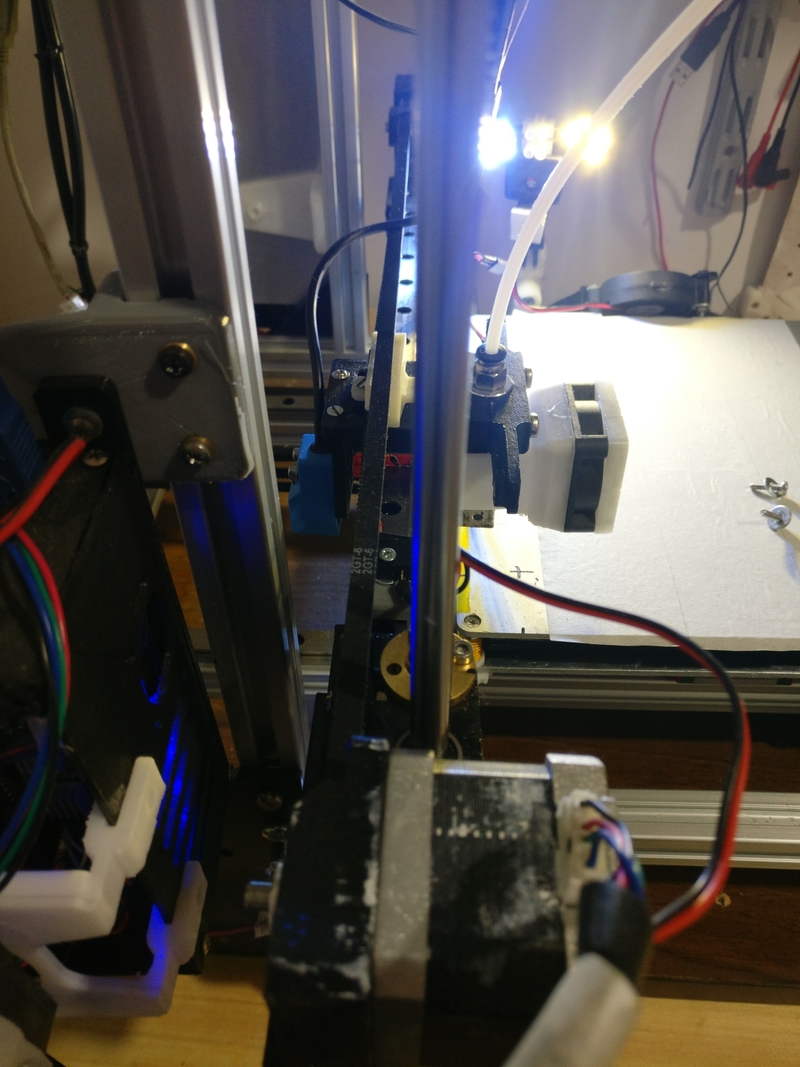

This update it is vey simple to make in your Anet A8 because the only thing that you need todo is print this parts and change the x axes fron your Anet A8. In may printer also I update the y axes and the exterior frame and the result is amazing for few dollars. Befor this update all the time I wasted time in calibration axes but now nothng at all.
When I print parts thar involve mechanics I like print it with 2 walls and minimun 10% infill after that I paint this pieces with 2 applications. The paint give to the piece a better behaviour again temperature and water hunidity absortion.
