Hello,

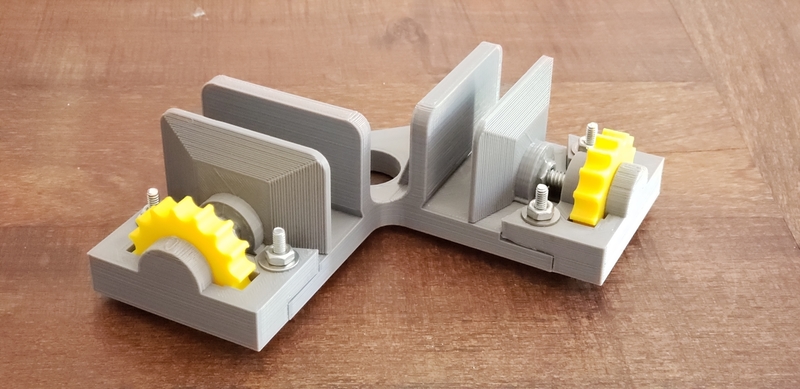

Today I share this creation I made to make my life easier. I am to build some furniture these days, and as it includes some drawers, I needed some 90 degree clamps to help me build them correctly.
This model will work OK holding pieeces between 7 a 21mm wide. By replacing the screw by a smaller one, it can open up to 26mm.
Hope you find it useful as I did.
Printing: all parts but the two back ones (the ones that hold the wheels) are to be printed without supports, unfortunetly these other 2 will need some support as they are to be printed horizontal due to material ressistance issues.
Assembly: Please add some glue to the nuts in the moving angles. Optionally, you can print the glueless ones but consider they wont be able to close up to 7mm.
I will accept a tip if you like it too much!
Thank you.
