Description: --------------------

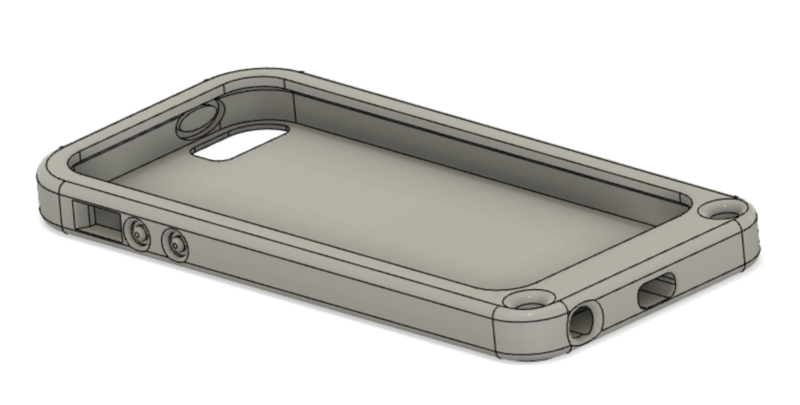

A minimal design to a 2018 iPhone 6 SE case but with the added eyelets for mini-carabiners or other lanyard system.
4 mm of infill around three sides of the phone provide a reasonable amount of impact protection and the bottom provides access for a lightning cable. Hollow cavities allow for minimal sound attenuation.
Note: initial prints, displayed, did not include headphone access.
Printing: --------------------
This print was accomplished with .5mm nozzle and .2mm layer height using 1.75mm TPU. I would recommend a smaller nozzle and layer height to increase adhesion for the top-most layers.
Supports: --------------------
Recommend minimizing supports to only the mute slider and the sound/lightning cavities.
Loading prints...
iPhone SE (2018) Case with Lanyard Compatibility
Creative Commons Attribution-NonCommercial-ShareAlike
You can distribute, remix, adapt, and build upon the material in any medium or format for noncommercial purposes only, with attribution and under the same license.
