Walkabot - Gravity Powered Ramp Walking Robot
Free

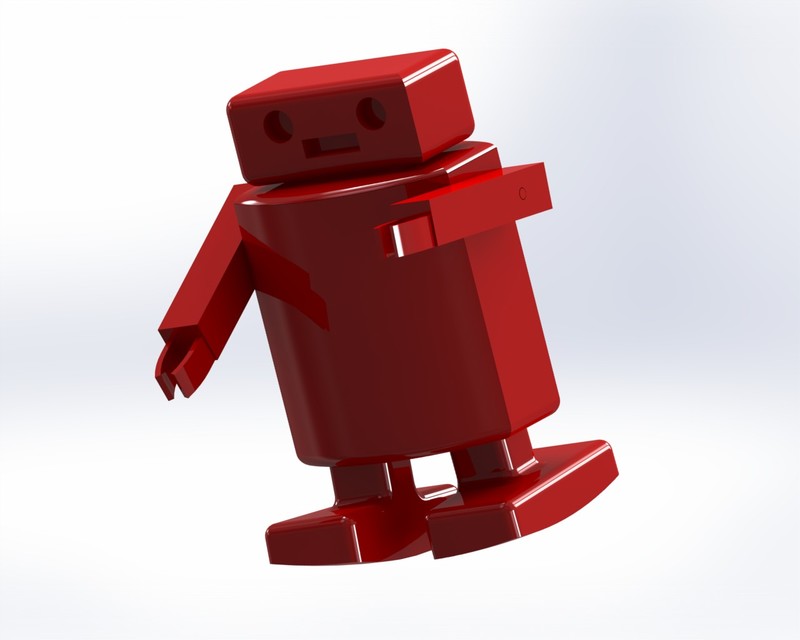

Walkabot is a gravity powered ramp walking robot. Place him on a shallow ramp, tilt him to one side, let go and he will walk down the slope. The robot makes a "walka-walka" sound as he walks.

See the video of him walking here: http://youtu.be/vgM6PPkw6cQ Assemble the robot by positioning the legs inside the body and pushing the axle through the body and legs as shown in the assembly diagram. The legs should swing freely inside the body. Attach the arms to the outside of the body on the axle. The arms can be moved up and down to adjust the balance slightly.

Loading comments...

Loading prints...

Walkabot - Gravity Powered Ramp Walking Robot

likes
17 collections
Creative Commons Attribution-NoDerivatives

You can download, share, and use commercially, but you cannot change the material in any way or use it to make something new.

CC BY-ND Licensed under CC BY-ND
Files Included

7 downloadable files:

leg-right.stl
STL Model
~1-5 MB
Est. size
leg-left.stl
STL Model
~1-5 MB
Est. size
head.stl
STL Model
~1-5 MB
Est. size
axle.stl
STL Model
~1-5 MB
Est. size
arm-right.stl
STL Model
~1-5 MB
Est. size
body.stl
STL Model
~1-5 MB
Est. size
arm-left.stl
STL Model
~1-5 MB
Est. size
Free download - login required
Downloaded: 223 times
