Tension Nut Filament Guide
Free

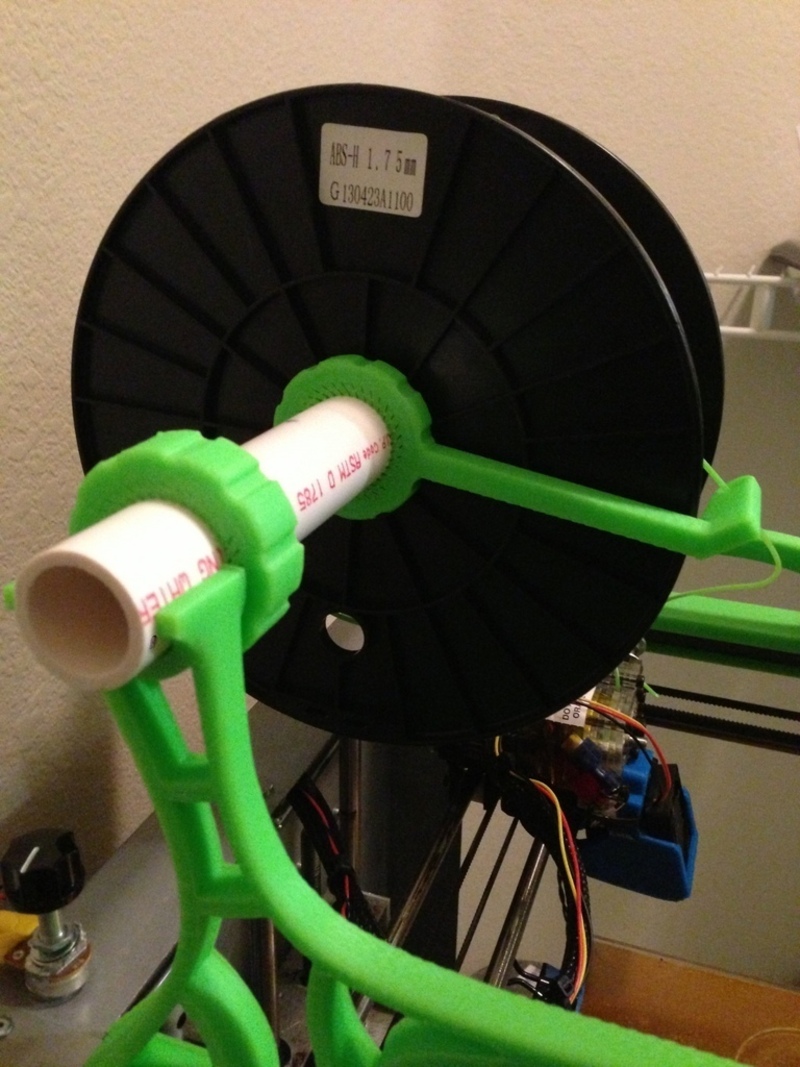

I added a filament guide, based on my tension nut, so I don't need to worry about the filament looping off the roll on a long unattended print job. The tension nut is tight enough that it doesn't need a screw to hold it in place though you can add one if you need it. The hole has a large fillet on both sides so the filament will pass through easily and the arm should accommodate various spools. You can add a small square of foam in front of it and push the filament through. The foam will clean off any loose dust or particles on the filament before it gets to your extruder.

Loading comments...

Loading prints...

Tension Nut Filament Guide

likes
2 collections
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

1 downloadable file:

PVC_Tension_Nut_Filament_Guide.stl
STL Model
~1-5 MB
Est. size
Free download - login required
Downloaded: 64 times
