Anything on lathe QCTP
Free

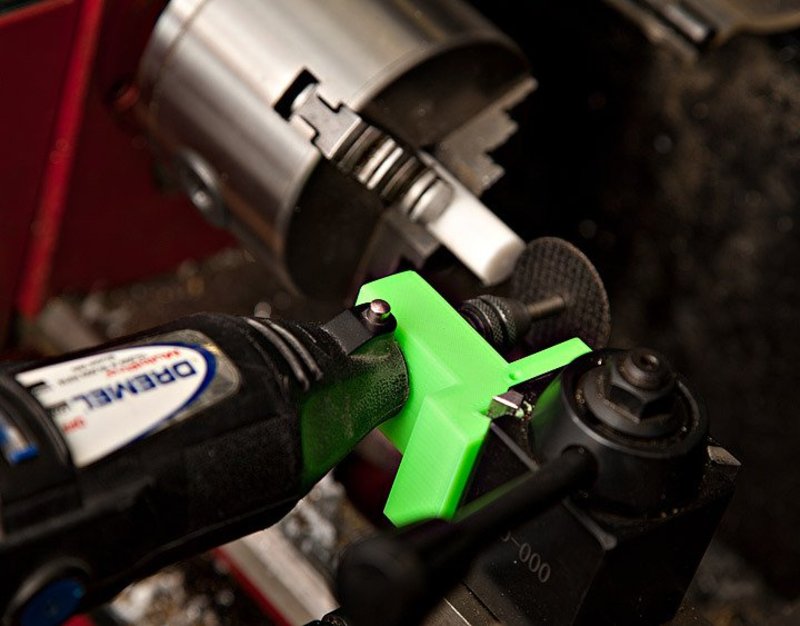

This is an adapter for lathe 0XA Quick Change Toolpost: mount various tools and objects, for example a Dremel tool to make vertical or diagonal slots and holes, otherwise not possible on a lathe. A few variations are provided: Horizontal 1/4-20 - for a Micrometer for example A screw-in Dremel support Vertical 1/4-20 Generic base You can create more adapters by boolean joining the generic plate included (Lathe_0XA.stl) with your custom object mount, if you have the two STLs you can do this easily in 3D Builder. Note: this is designed for 250-000 tool-post (0XA) which is common in 7x10 mini-lathe (Harborfreight, LittleMachineShop, etc) WARNING: 3D printed parts are obviously prone to failure in such an environment, especially because of mechanical stress. Do not use such adapters without proper protection when the late is spinning.

Loading comments...

Loading prints...

Anything on lathe QCTP

likes
15 collections
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

4 downloadable files:

Lathe_0XA_micrometer.stl
STL Model
~1-5 MB
Est. size
lathe_0XA_dremel.stl
STL Model
~1-5 MB
Est. size
Lathe_0XA_Generic.stl
STL Model
~1-5 MB
Est. size
Lathe_0XA.stl
STL Model
~1-5 MB
Est. size
Free download - login required
Downloaded: 357 times
