Kossel R1
Free
Kossel R1 - Thumbnail 1 Kossel R1 - Thumbnail 2 Kossel R1 - Thumbnail 3 Kossel R1 - Thumbnail 4 Kossel R1 - Thumbnail 5 Kossel R1 - Thumbnail 6 Kossel R1 - Thumbnail 7 Kossel R1 - Thumbnail 8 Kossel R1 - Thumbnail 9

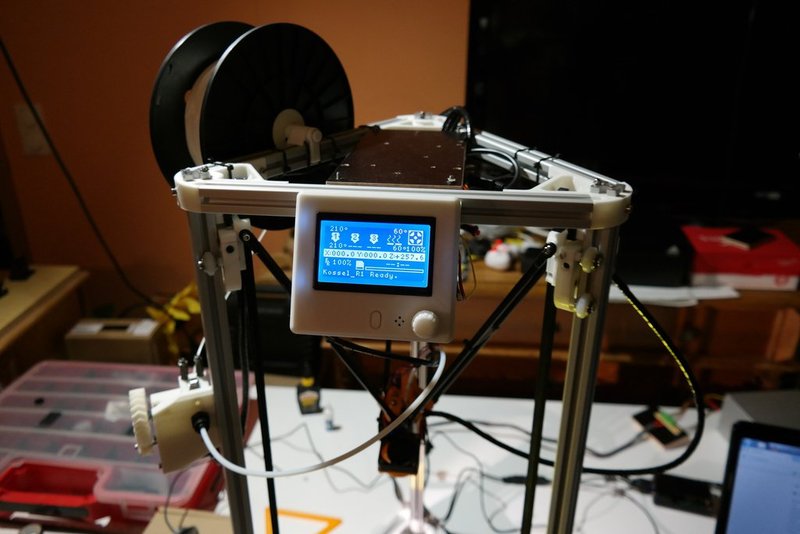

Als Basis dienten die Dateien vom Kossel ( http://reprap.org/wiki/Kossel ). Ich habe die Modelle für ein 20x20 mm Profil modifiziert (http://www.motedis.com/shop/Nutprofil/20-I-Typ-Nut-5/Aluprofil-20x20-I-Typ-Nut-5::1076.html). Die Länge der horizontalen Profile beträgt 280mm und die vertikalen sind 650mm lang. Das ergibt ein druckbares Quadrat von 140mm und einen bedruckbaren Durchmesser von 190mm. Die Druckhöhe beträgt 255mm. Die Länge der diagonalen Streben beträgt 252mm (DELTA_DIAGONAL_ROD = 252mm). Im Effector sitzt ein E3D-V6 Hotend. Die Laufrollen werden von je zwei 623-ZZ Lagern mit Bund gehalten. https://www.youtube.com/watch?v=iVsrF8vUusY https://www.youtube.com/watch?v=3J_WU7eObvA
