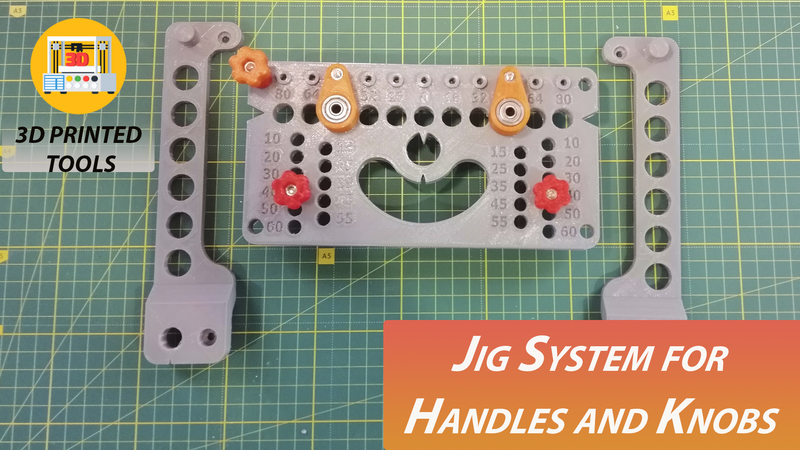

For professional installation of handles and knobs, ideal for doors and drawer fronts. An invaluable tool for any cabinet installer. Versatile for mounting single and multi-hole knobs. Distances between centers 16 mm, maximum handle size 512 mm, without extension cords maximum 160 mm. The drill size is 5 mm.
Screws M4 50 mm - 2 pcs, 35 mm - 2 pcs, 25 mm -2 pcs bearings 625zz - 4 pcs
!!!! Extension_Right = Extension_left.stl + mirror reflection in 3d Slicer
Loading prints...
Jig System for Handles and Knobs
