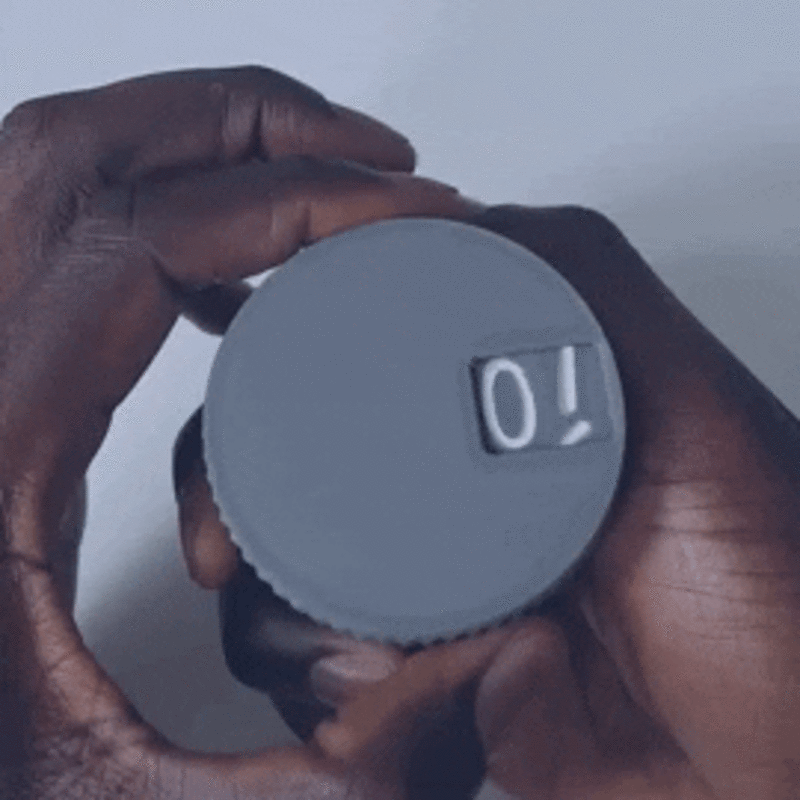

With this model I wanted to make a counter with large digits but in the most compact form possible.
It will allow you to count from 0 to 39 with a single gesture:
Simply activate the serrated ring to scroll through the digits of the units; the digits of the tens will be activated automatically, whether you turn the ring clockwise or anticlockwise.
All components are printable.
Step-by-step assembly included.
3D file format: STL.
Dimensions: 64 x 26 mm
****************
Printed with Prusa I 3MK3S
12 Components to be printed
Nozzle: 0.4 mm
Layer height: 0.2 mm
Filament: PLA 1.75mm
Support : Yes for the "RatchetAxis"
Printing temperature: 190°C / 215°C (first layer)
Bed temperature : 60°C
Loading prints...
Mechanical Counter // BIG DIGITS 0 to 39
Creative Commons Public Domain
The creator has waived all rights to the work. You can copy, modify, distribute and perform the work, even for commercial purposes, without asking permission.
Licensed under CC0
