ClusterCTRL Stack frame case
Free
ClusterCTRL Stack frame case - Thumbnail 1 ClusterCTRL Stack frame case - Thumbnail 2 ClusterCTRL Stack frame case - Thumbnail 3 ClusterCTRL Stack frame case - Thumbnail 4 ClusterCTRL Stack frame case - Thumbnail 5

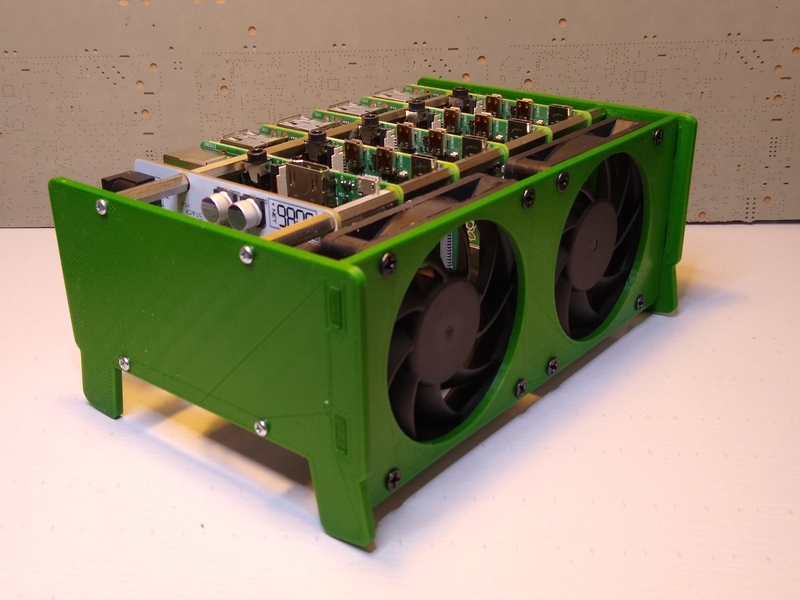

These are simple frame case for the ClusterCTRL Stack (Raspberry Pi Cluster controller/backplane).

There are two STL files for the fan trays (both for 2x70 mm fans or 4x70 mm fans for the double).

- 170 mm is for Controller+5xPi+supplied standoffs - 184 mm is for Controller+5xPi+supplied standoffs+mSATA/M2 adapter PCB+12 mm spacer
