Brushless DC motor running on capacitor.
Can run almost 1 hour with a capacitor.
Derivation of user Lasersaber object:
http://www.thingiverse.com/thing:644938
8 coils on stator.
4 magnets on rotor.
No magnetic alloys in the rotor or the stator.
Run easy with no drag, just the diamagnetic forces hold it.

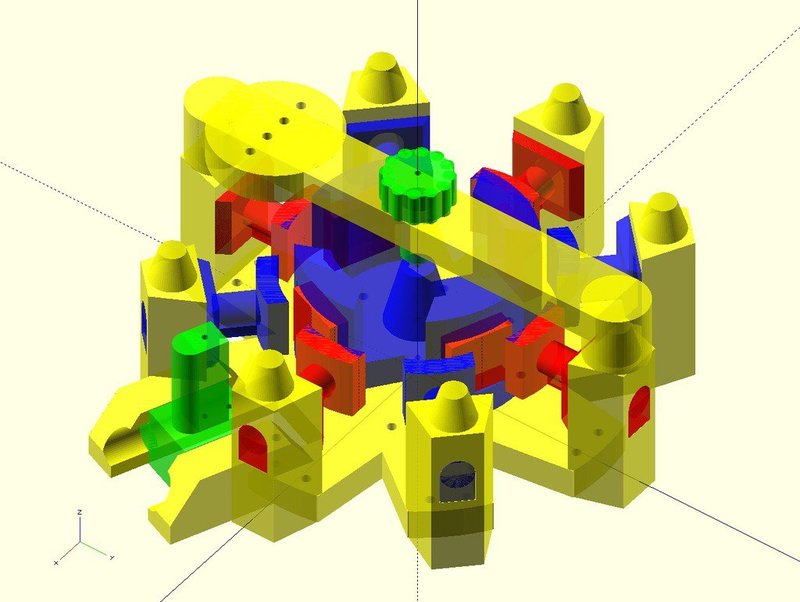

Made in OpenSCAD, you can change all.
OpenSCAD simulation video:
https://youtu.be/dlRWNgF0Y1g
Still in work process.
