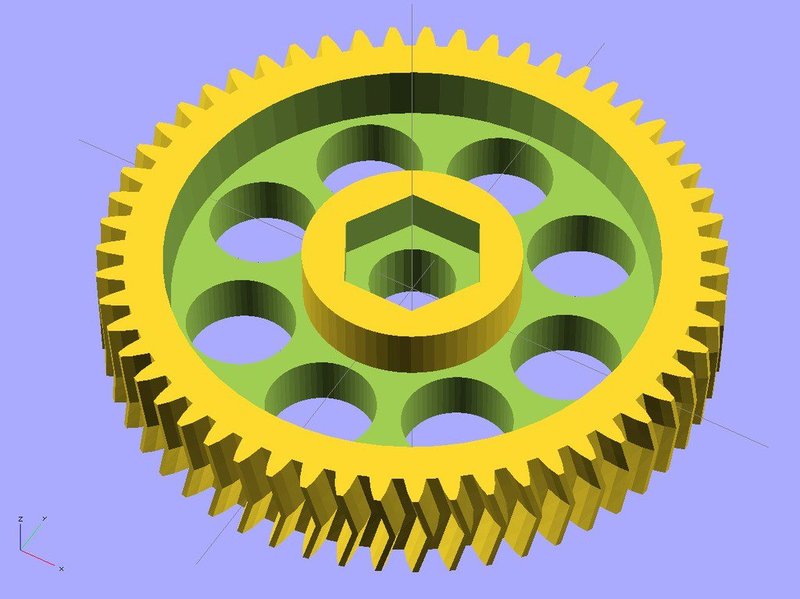

All parametric gear generator in OpenSCAD:
* Simple tooth (angle_twist=0)
* Double helical/herringbone tooth (angle_twist=n)
All parametric grub generator. number, angle and size of screws.
* Sample for gear and grub.
* Sample for gear and groove.
* Samples gears from 10 teeth to 50 with 5mm hole.
Derivation of: Parametric Gear by D1plo1d Copyright 2010
Parametric Pulley by droftarts January 2012
The OpenSCAD files are inside the Helical.zip.stl, the site do not accept .SCAD files.
Thanks!
