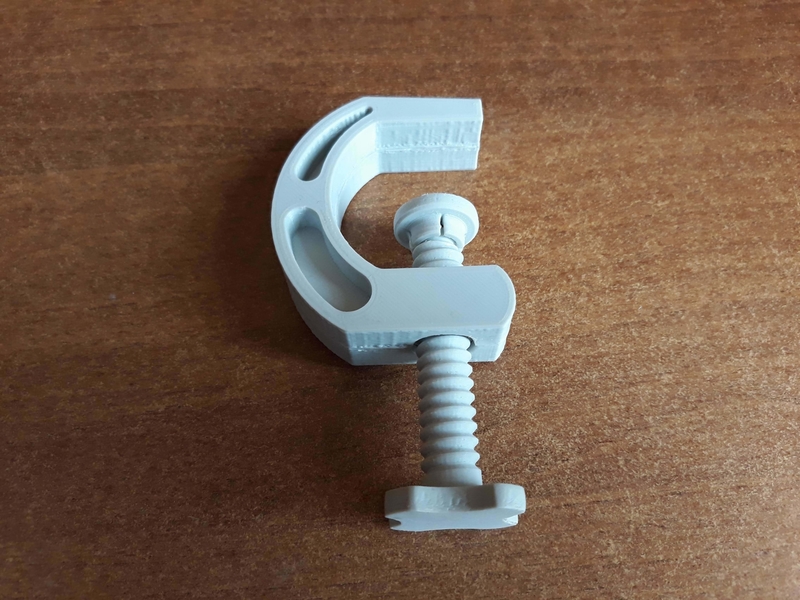

G Clamp with increased strength at minimum weight.
The prototype is tested on Qidi Tech X-Plus printer with 0.4 mm nozzle.
Material: ABS (niceABS Light Grey);
Print Settings:
- Extruder:
- Flow: 100%;
- Retraction Distance: 1.5 mm;
- Retraction Speed: 30 mm/s;
- Layer:
- Layer Height: 0.16 mm;
- Line Width (Inner Wall, Outer Wall, Top, Bottom): 0.35 mm;
- Line Width (Infill): 0.42 mm;
- Initial Layer Line Width: 130%;
- Wall Line Count: 3;
- Top Layers: 5;
- Bottom Layers: 4;
- Top/Bottom Patterns: Lines;
- Fill Gaps Between Walls: Everywhere;
- Infill:
- Infill Density: 90%;
- Infill Pattern: Triangles;
- Infill Overlap Percentage: 50%;
- Infill Before Walls: Yes;
- Additions:
- Z Seam Alignment: Sharpest Corner;
- Skin Overlap Percentage: 50%;
- Combing Mode: Within Infill;
- Build Plate Adhesion Type: Brim;
- Brim Width: 8 mm;
- Speed:
- Infill Speed: 40 mm/s;
- Wall Speed (Inner, Outer, Top, Bottom): 25 mm/s;
- Initial Layer Speed: 25 mm/s;
- Travel Speed: 120 mm/s;
- Minimum Layer Time: 12 s;
- Temperature:
- Printing Temperature (Body, Shaft, Nut, Pin): 220 deg;
- Printing Temperature (Cap): 225 deg;
- Build Plate Temperature: 100 deg;
- Cooling:
- Initial Fan Speed: 20%
- Regular Fan Speed: 100%
- Regular Fan Speed at Height: 0.62 mm;
- Support (Applied only on Body, disabled on other parts)
- Support Placement: Touching Build Plate;
- Support Overhang Angle: 30%;
- Support Pattern: Lines;
- Support Density: 14%;
- Support Z Distance: 0.16 mm;
- Support X/Y Distance: 2 mm;
