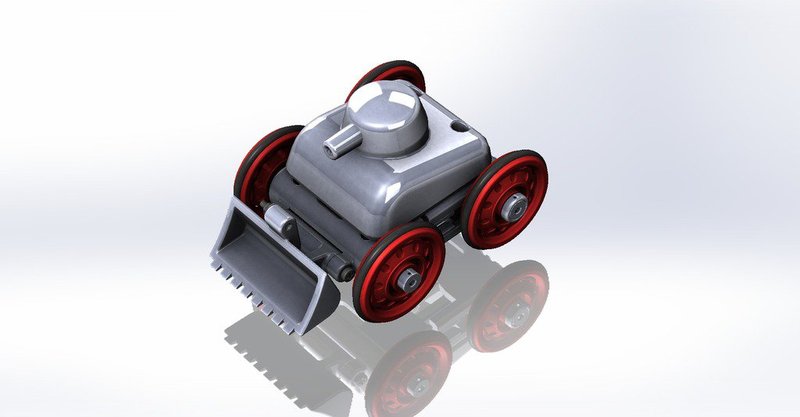

Motorized Tank & Robot Chassis & Toy
Free
This design is a bit modular. It can be mobile robot chassis mechanical tank toy (no motors) motored tank toy mechanical buldozer motored buldozer. The [optional] tank palette is either a standard 7-8 speed bicycle chain or an o-ring of suitable size stretched to two wheels on one side. One o-ring for each wheel can also be used. The chassis is designed for the dimensions of geared DC mini motors which can be purchased from many sources. If it is going to be built as a pure mechanical toy, then the supplied extra axle parts can be built and used to fill places of the motors. There is a mechanism at the center of the chasis that enables us to tighten the chain without using an extra jockey wheel, by lengthening and shortening the entire chasis by turning a single screw. If you plan to build the wheels version then you might just glue the parts together. Or wrap two rubber bands around the chassis to keep parts together. the wheels are supplied in six different versions. One type is suitable for free rotation over the non motorized axles. And the other type is for being fixed to gear motor's shaft. And it can be tightened by a screw on it. Both of these are supplied in either tank palette, rubber ring or normal wheel versions which doesn'require a bicycle chain to be installed around them. Comments are welcome. https://www.youtube.com/watch?v=NfrQwK_K7No&feature=youtu.be

Loading comments...

Loading prints...

Motorized Tank & Robot Chassis & Toy

likes
0 collections
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

16 downloadable files:

View 3D
lug1.STL
STL Model
27.2 KB
File size
View 3D
Axle.STL
STL Model
59.7 KB
File size
View 3D
lug2.STL
STL Model
45.8 KB
File size
View 3D
AxleCAP.STL
STL Model
~1-5 MB
File size
View 3D
Chassis_front.STL
STL Model
~1-5 MB
File size
View 3D
digger.STL
STL Model
~1-5 MB
File size
View 3D
Chassis_rear.STL
STL Model
~1-5 MB
File size
View 3D
Turret.STL
STL Model
~1-5 MB
File size
View 3D
wheel2.STL
STL Model
~1-5 MB
File size
View 3D
wheel1.STL
STL Model
~1-5 MB
File size
View 3D
Wheel_ROAD_For_MOTOR.STL
STL Model
~1-5 MB
File size
View 3D
Wheel_ROAD_WITHOUT_MOTOR.STL
STL Model
~1-5 MB
File size
View 3D
Table.STL
STL Model
~1-5 MB
File size
View 3D
Wheel_ORING_For_MOTOR.STL
STL Model
~1-5 MB
File size
View 3D
Wheel_ORING_WITHOUT_MOTOR.STL
STL Model
~1-5 MB
File size
View 3D
extra_space.STL
STL Model
~1-5 MB
File size
