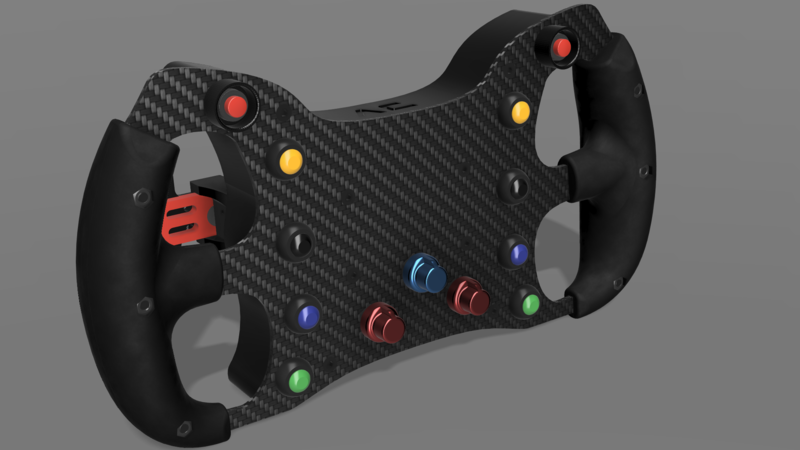

DIY AC GT-Formula Steering Wheel by AC3D
- 300 mm long.
- Included Magnetic Paddle Shifter.
- Included 70 mm Thrustmaster Quick Release. (You can also use your own 70mm quick release.).
- There is the possibility and recommended of ordering the front plate file .dxf to cut in CNC aluminum or carbon fiber 3 mm or 4 mm.
- There is the possibility and recommended of ordering the paddles file .dxf to cut in CNC aluminum or carbom fiber 3 mm ir 4 mm.
Hardware:
(You can use screws with the head you want. For example: Countersunk head on the front panel).
- 10 = M4x20
- 2 = M4x30
- 8 = M4x35
- 4 = M4x45
24 = M4 Nuts (You can use self-braking nuts if you wish).
4 or 8 = 10x3 mm magnets.
Switch / buttons (you can use any that suits the measurements).
- 3 = EC11 Rotary Encoder, but I'm sure any will work.
- 2 = Microswitch https://www.amazon.com/Cylewet-25Pcs-Switch-Arduino-CYT1073/dp/B073TYWX86/ref=sr_1_11?dchild=1&keywords=Micro+Switch&qid=1609527518&sr=8-11&tag=cults0d-20
- 2 = 10 mm Buttons https://es.aliexpress.com/item/4000164359428.html?spm=a2g0o.productlist.0.0.68c61522p5e9hR&algo_pvid=44824074-f4d7-42e0-9d33-0a011c26c4c2&algo_exp_id=44824074-f4d7-42e0-9d33-0a011c26c4c2-1&pdp_ext_f=%7B"sku_id"%3A"10000000546906660"%7D&pdp_pi=-1%3B22.46%3B-1%3B3052%40salePrice%3BUYU%3Bsearch-mainSearch
Electronics Arduino or Leo Bodnar or STM32.
70 mm Quick Release. (Included 70 mm Thrustmaster Quick Release). (You can also use your own 70mm quick release).
Personal use only, it is forbidden to sell the model and its prints.
In case you need something customized, different sizes or style you can contact via private message or email.
Contact email: [email protected]
3D Printing Settings:
0.4 Nuzzle.
0.2 - 0.18 Layer
50% + Infill.
