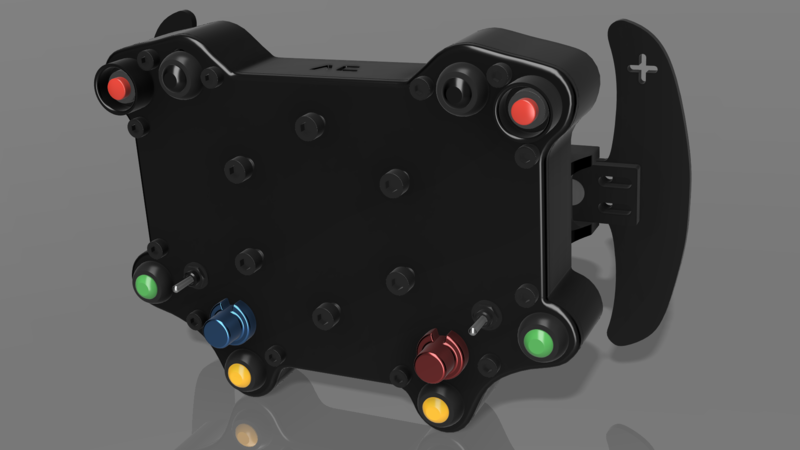

DIY AC Plate Steering Wheel by AC3D

• Included Magnetic Paddle Shifter.
• Included 70 mm Thrustmaster Quick Release. (You can also use your own 70mm quick release.).
• There is the possibility of ordering the front panel file .dxf to cut in CNC aluminum or carbom fiber 4 mm or 5 mm.
• There is the possibility of ordering the paddles file .dxf to cut in CNC aluminum or carbom fiber 3 mm or 4 mm.

Hardware:

(You can use screws with the head you want. For example: Countersunk head on the front panel).

• 12 = M4x20
• 12 = M4x30
• 2 = M4x35

• 6 = M5x45

• 26 = M4 Nuts

• 6 = M5 Nuts

• 4 or 8 = 10x3 mm magnets.

Switch / buttons (you can use any that suits the measurements).

• 2 = EC11 Rotary Encoder, but I'm sure any will work.
• 2 = 2 = Microswitch https://www.amazon.com/Cylewet-25Pcs-Switch-Arduino-CYT1073/dp/B073TYWX86/ref=sr_1_11?dchild=1&keywords=Micro+Switch&qid=1609527518&sr=8-11&tag=cults0d-20
• 2 = 10 mm Buttons https://es.aliexpress.com/item/4000164359428.html?spm=a2g0o.productlist.0.0.68c61522p5e9hR&algo_pvid=44824074-f4d7-42e0-9d33-0a011c26c4c2&algo_exp_id=44824074-f4d7-42e0-9d33-0a011c26c4c2-1&pdp_ext_f=%7B"sku_id"%3A"10000000546906660"%7D&pdp_pi=-1%3B22.46%3B-1%3B3052%40salePrice%3BUYU%3Bsearch-mainSearch
• 6 = 12 mm Buttons https://es.aliexpress.com/item/32976514600.html?spm=a2g0o.productlist.0.0.68c61522p5e9hR&algo_pvid=44824074-f4d7-42e0-9d33-0a011c26c4c2&algo_exp_id=44824074-f4d7-42e0-9d33-0a011c26c4c2-33&pdp_ext_f=%7B"sku_id"%3A"66673243805"%7D&pdp_pi=-1%3B13.99%3B-1%3B-1%40salePrice%3BUYU%3Bsearch-mainSearch

• 2 = Toggle Switch Momentary ON ON https://es.aliexpress.com/item/1005001951366191.html?spm=a2g0o.productlist.0.0.50a3150dISeaW4&algo_pvid=fb00722a-ad1a-4275-b092-840448fc6dfd&algo_exp_id=fb00722a-ad1a-4275-b092-840448fc6dfd-1&pdp_ext_f=%7B%22sku_id%22%3A%2212000018203858432%22%7D&pdp_pi=-1%3B2.2%3B-1%3B-1%40salePrice%3BUSD%3Bsearch-mainSearch

• Electronics Arduino or Leo Bodnar or STM32.

• 70 mm Quick Release. (Included 70 mm Thrustmaster Quick Release). (You can also use your own 70mm quick release).

Personal use only, it is forbidden to sell the model and its prints.

In case you need something customized, different sizes or style you can contact via private message or email.

Contact email: [email protected]
