Summary
This is an STL model of the Panasonic G16909 micro-switch. The switches are quite small, and are marked with AV46h.
I've also included the DeisgnSpark .rsdoc source file.

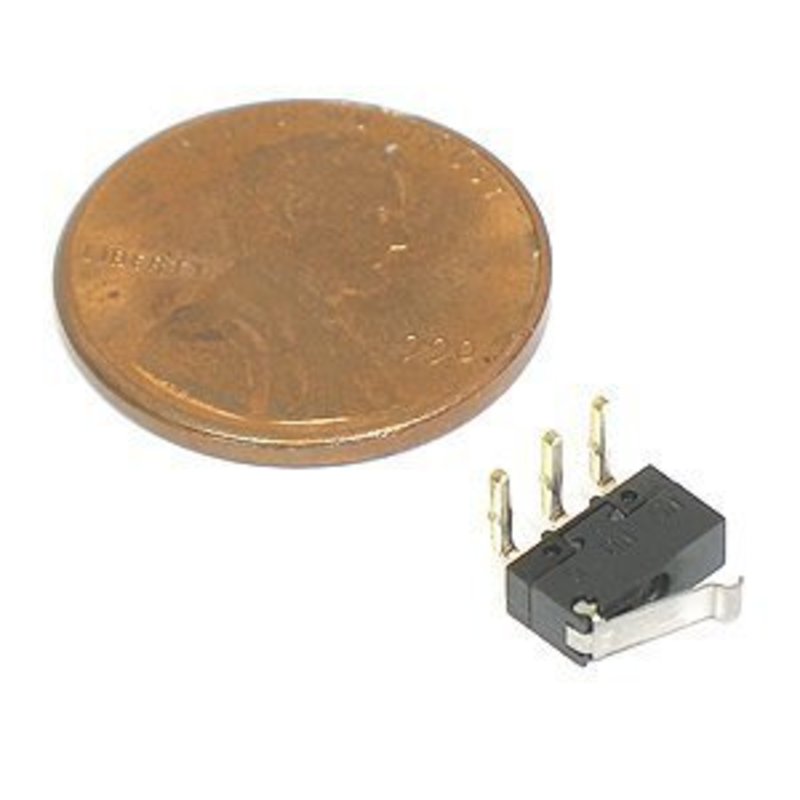

Gallery picture credit goes to Electronics Goldmine where you can purchase the switches. http://www.goldmine-elec-products.com/prodinfo.asp?number=G16909 The other two pictures are my own.
