Summary
This STL is a quick "sketch" of the 5v relay board that I'm using for an Arduino project. The model is an approximate representation of its dimensions for layout work and planning an enclosure.

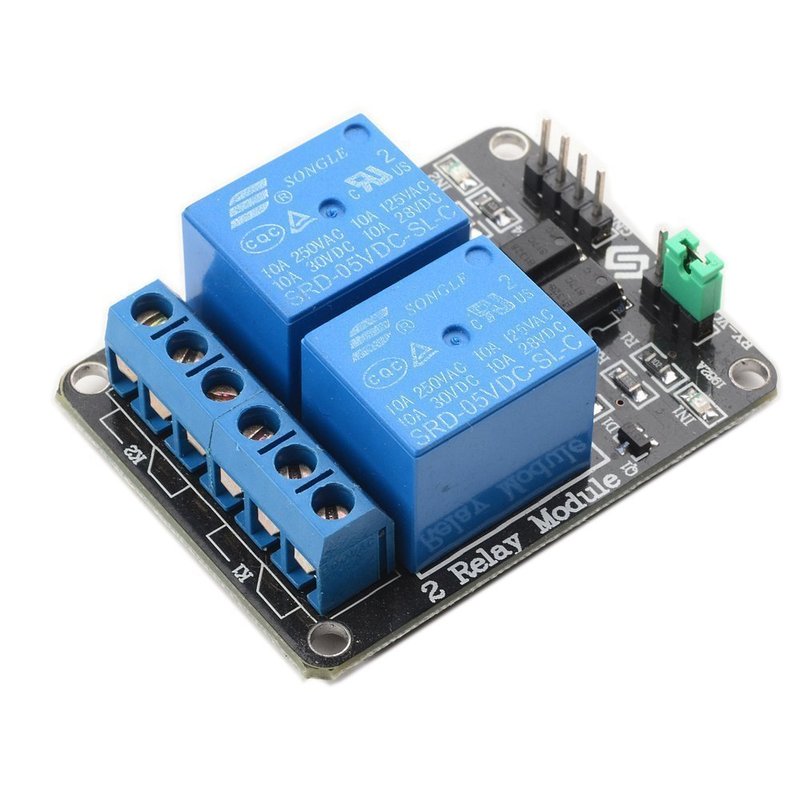

The gallery image I'm using is from the product page on Amazon.
http://www.amazon.com/gp/product/B00E0NTPP4
Created in DesignSpark mechanical, .rsdoc source included.
