Belt idler guide
Free

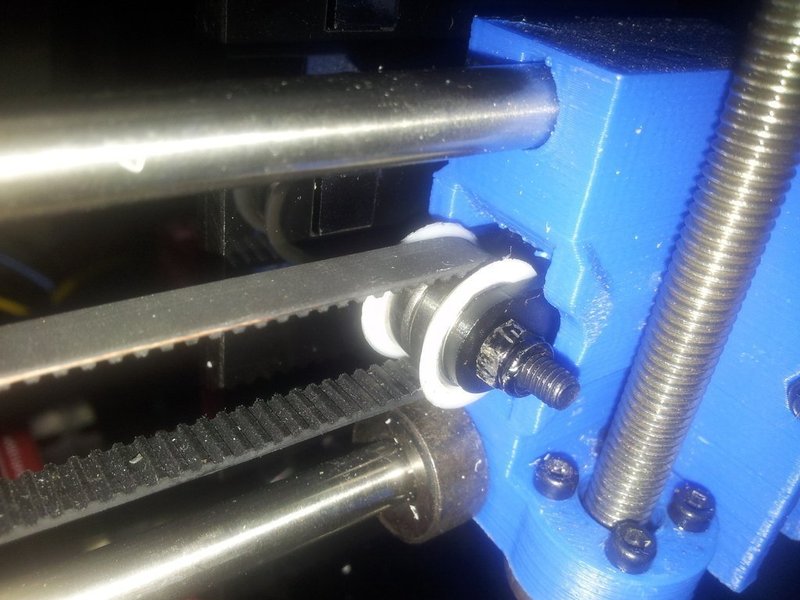

Summary This is a belt idler guide for 13mm bearring that will fit on most 3d printer. I found out that the belt tends to grind on the edge of the tensioner/idler and this is not a good idea to leave it grinding at the edge. It might break the belt one day and the benefits of adding this little friend you will get smoother and lighter motion while lessening the friction caused by the grinding at the edge The plastic were grinded on the edge of the bearing holder, it might generate a lot of plastic particles Instructions Printed mine with these parameters ABS layer 0.1 bed 110c extruder 230 speed 20mm

Loading comments...

Loading prints...

Belt idler guide

likes
1 collection
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

1 downloadable file:

View 3D
tensioner_guide.stl
STL Model
1.8 MB
File size
Free download - login required
Downloaded: 40 times
