Summary

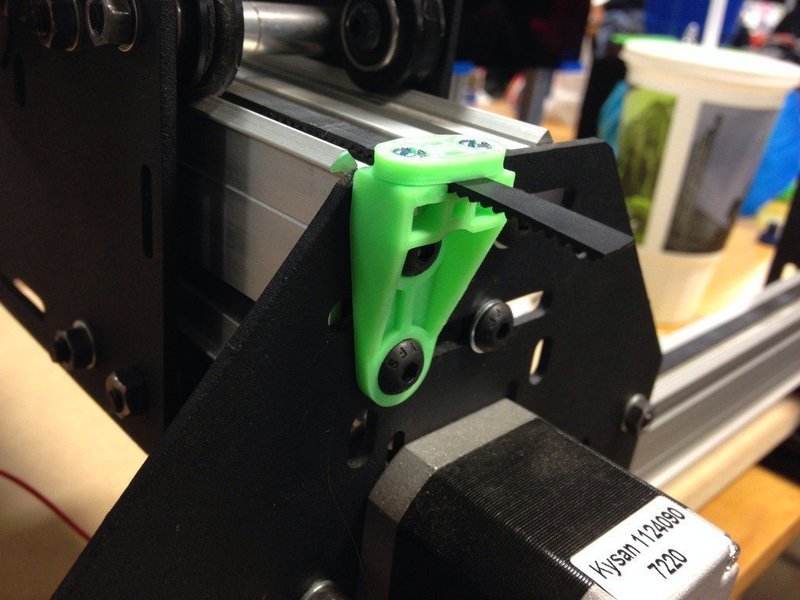

I designed these belt clamps to mount to the outside of the plates on my ShapeOko II and increase the workable area of the machine.
The clamps attach using the existing M5 machine screws into the extrusions, and the top clamp is designed to fit M3 hardware.
Created with DesignSpark Mechanical. RSDOC source file is included.
