Inkpen Tracker Bands
Free

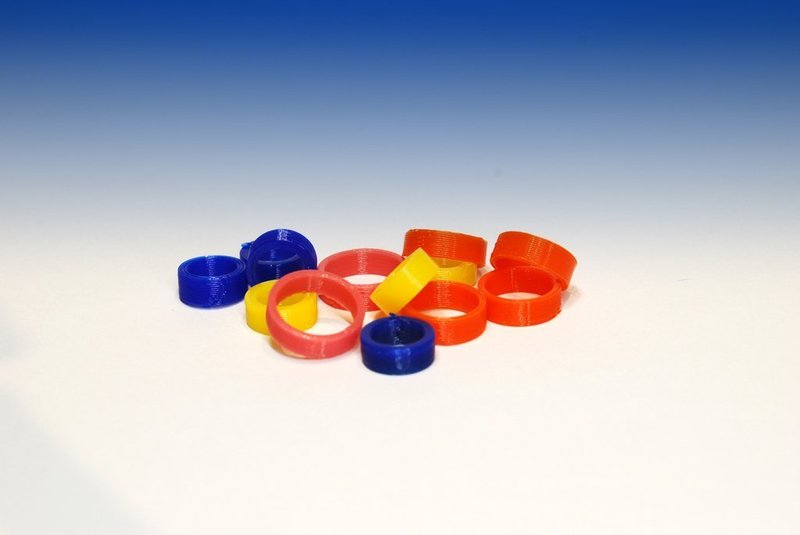

Summary I'm always losing my ink pens at the office. I lay one down somewhere, and then I have nothing to write with the next time I need one. Where do they go? I needed a tracking device. I thought I'd use some NinjaFlex filament I bought from Maker Geeks http://www.makergeeks.com/ to band my pens so I could recognize them if I saw them again. Much as scientific researchers do to track animals in the wild. I measured various writing utensils I had on my desk and used 123D Design to make flexible bands to fit them. If you need a size not listed, they can be scaled to fit in your slicer software. Print Settings Printer Brand: PrintrbotPrinter: Printrbot PlusRafts: NoSupports: NoResolution: .3mmInfill: 100% Notes: I slowed the bot way down to 10mm/sec, no retraction. I printed at 230C on a Kapton bed wiped with a glue stick heated to 70C. I use this NinjaFlex adapter I found http://www.thingiverse.com/thing:439617 to coax the filament into behaving itself. How I Designed This Designed with 123D Design I started with a cylinder 4mm tall and 2mm larger than the ID of the band I wanted. Then I created another cylinder 10mm tall and the exact size of the ID of the band I wanted. I then snapped the smaller one onto the larger one. Using the move tool I moved the smaller one down through the larger one. I then used the Combine/Subtract tool to cut the smaller one out of the larger one, creating a band.

Loading comments...

Loading prints...

Inkpen Tracker Bands

likes
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

4 downloadable files:

View 3D
Pen-ID-7.5mm.stl
STL Model
~1-5 MB
File size
View 3D
Pen-ID-10mm.stl
STL Model
~1-5 MB
File size
View 3D
Pen-ID-11.5mm.stl
STL Model
~1-5 MB
File size
View 3D
Pen-ID-9mm.stl
STL Model
~1-5 MB
File size
