Crossfire Vibration Dampening Battery Trays
Free

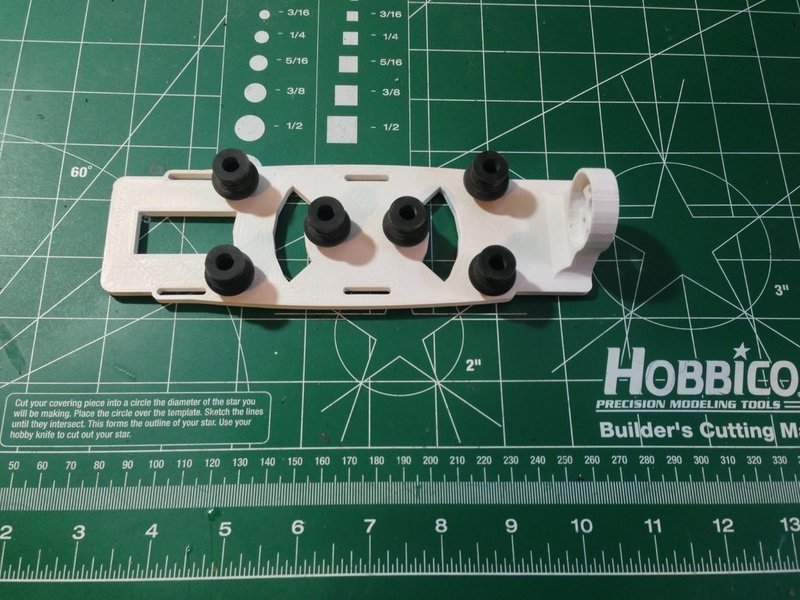

SummaryI have collected all of the different vibration dampening battery trays that I have designed here. They work with the original Crossfire and the Crossfire 2 frames and mount to the Bottom Plate via rubber dampener bushing (Hobby King). The four different trays are the basic ways to mount a camera. One has a GoPro mount, a mount for a camera pitch servo, one for a bushless gimbal and the last has nothing. The original Crossfire and Crossfire 2 can be found here: http://www.thingiverse.com/thing:234867 http://www.thingiverse.com/thing:32281 If you like my designs a small donation is greatly appreciated! Donate InstructionsPrint at 20% infill with supports on and raft off. Files: BatteryTrayGP - Battery tray with a standard GoPro mount for a GoPro Case. BatteryTrayGimbal - Battery tray with a mount for a brushless gimbal. See thing here for more info and files: http://www.thingiverse.com/thing:140126 BatteryTrayServo - Battery tray for mounting a 9 gram servo to control camera pitch. BatteryTrayPlain - Battery tray with nothing on it, to mount using your own options or to modify. C1DampenerBottom - Bottom dampening plate for the original Crossfire. C2BottomPlate - Bottom dampening plate for Crossfire 2. TriBottomPlateDamp - Bottom dampening plate for the tricopter.

Loading comments...

Loading prints...

Crossfire Vibration Dampening Battery Trays

likes
0 collections
Creative Commons Attribution-NonCommercial-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format for noncommercial purposes only, with attribution and under the same license.

CC BY-NC-SA Licensed under CC BY-NC-SA
Files Included

7 downloadable files:

View 3D
BatteryTrayServo.stl
STL Model
~1-5 MB
File size
View 3D
BatteryTrayPlain.stl
STL Model
604.6 KB
File size
View 3D
BatteryTrayGimbal.stl
STL Model
835.4 KB
File size
View 3D
C1DampenerBottom.stl
STL Model
~1-5 MB
File size
View 3D
C2BottomPlate.stl
STL Model
859.7 KB
File size
View 3D
TriBottomPlateDamp.stl
STL Model
781.3 KB
File size
View 3D
BatteryTrayGP.stl
STL Model
660.5 KB
File size
