Geoff's Y-Axis Idler Pulley & Gear for Solidoodle2 Mk3 & Mk4 -
Free

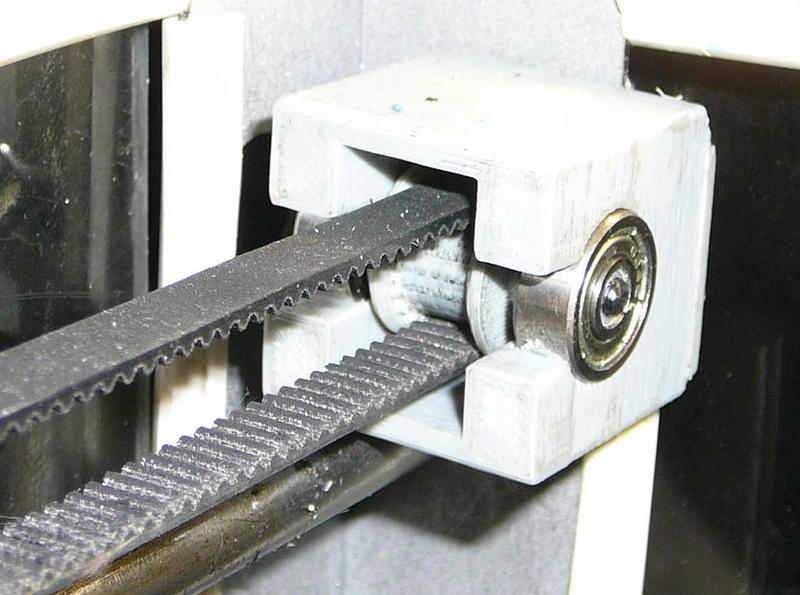

SummaryBased on my original bearing ( http://www.thingiverse.com/thing:1023433 ), with a few improvements 1 - smooth pulley - i found with the toothed pulley the belt occasionally jumped over a tooth 2 - I used bigger ID ball bearings, the new bearings are 13mm outer diameter, 5mm wide & 6mm inner diameter - makes for a much stronger axle on the pulley. 3 - Added Mk4 4 - with bearing retainer clips (the outside circles) I also included a pulley with the original 4mm ID, if you want to use the original size 4mm ID ball bearings

Loading comments...

Loading prints...

Geoff's Y-Axis Idler Pulley & Gear for Solidoodle2 Mk3 & Mk4 -

likes
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

4 downloadable files:

View 3D
Geoffs_Solidoodle2_Y-axis_Bearing_Mk3.stl
STL Model
~1-5 MB
File size
View 3D
Geoffs_Solidoodle2_Y-axis_Smooth_Belt_Gear_Mk3.stl
STL Model
~1-5 MB
File size
View 3D
Geoffs_Solidoodle2_Y-axis_Smooth_Belt_Gear_Mk3_4mmID.stl
STL Model
~1-5 MB
File size
View 3D
Geoffs_Solidoodle2_Y-axis_Bearing_Mk4_fixed.stl
STL Model
~1-5 MB
File size
Free download - login required
Downloaded: 59 times
