Katana w/ Sheath  - Full Size
Free

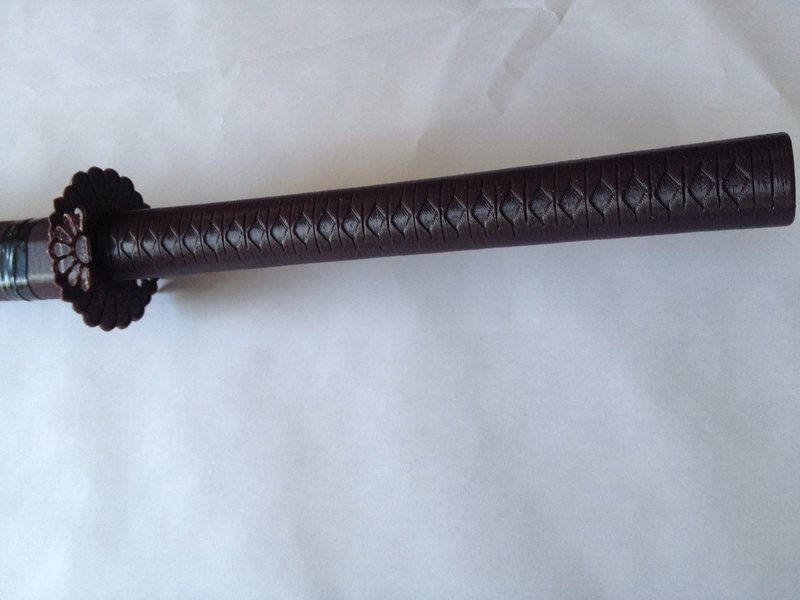

SummaryKatanas are traditionally a Japanese curved single edge blade between 60�73 cm. This is one was 3d printed in 2 pieces on my custom XXL Rostock Max w/ some spare filament. Its blade length is ~72cm and the total length is around 1m. This was a fun project and about 2 days worth of printing. The final weight of the katana was ~326g. It would undoubtedly break if struck strongly against something but it's surprisingly sturdy. I haven't seen another full size 3d printed Katana yet so I'd like to think this is the first worldwide. Good luck printing! Instructions1) Aquire printer that can print 1m in one dimension. 2) Print the sword blade w/ 3 perimeters and 0% infill 3) Print the handle w/ 3 perimeters and 20% infill 4)Join the blade to the handle 5) Print the sheath at 2 perimeters and 1% infill

Loading comments...

Loading prints...

Katana w/ Sheath - Full Size

likes
33 collections
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

3 downloadable files:

View 3D
katanasheath__repaired_.stl
STL Model
2.8 MB
File size
View 3D
katana2.stl
STL Model
11.5 MB
File size
View 3D
katana1.stl
STL Model
13.1 MB
File size
Free download - login required
Downloaded: 912 times
