Prusa I3 Hall Effect  Z endstop mount
Free

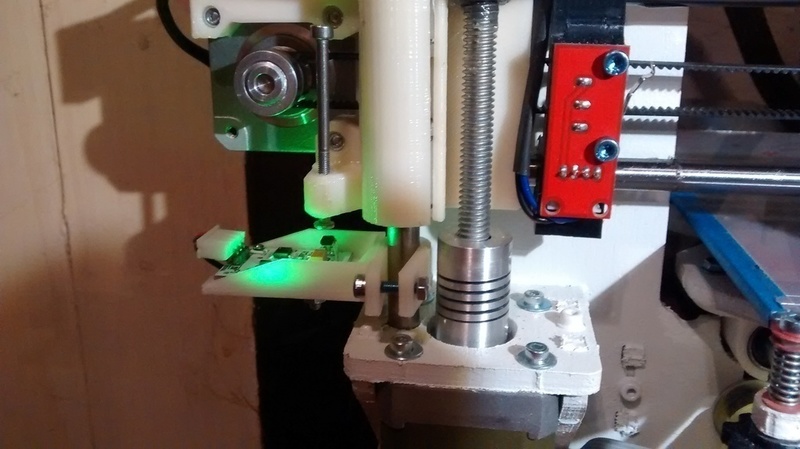

SummaryI have a very low Z on my Prusa I3 so I designed this Hall-O holder to fit in the limited space since I couldnt find one already made. I glued the magnet to an existing adjusting screw I had on my machine, but it can be mounted as you want. The clamp works with the very limited space between the smooth rod and motor coupler on my machine. It's working great and I get a much more consistent z height over using a micro switch.InstructionsI used ABS, but imagine any plastic will do. Printed on a MendelMax 1.5.

Loading comments...

Loading prints...

Prusa I3 Hall Effect Z endstop mount

likes
0 collections
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

1 downloadable file:

View 3D
M8_Hall-O_holder.stl
STL Model
32.5 KB
File size
Free download - login required
Downloaded: 48 times
