Extruder Idler with replaceable guider
Free

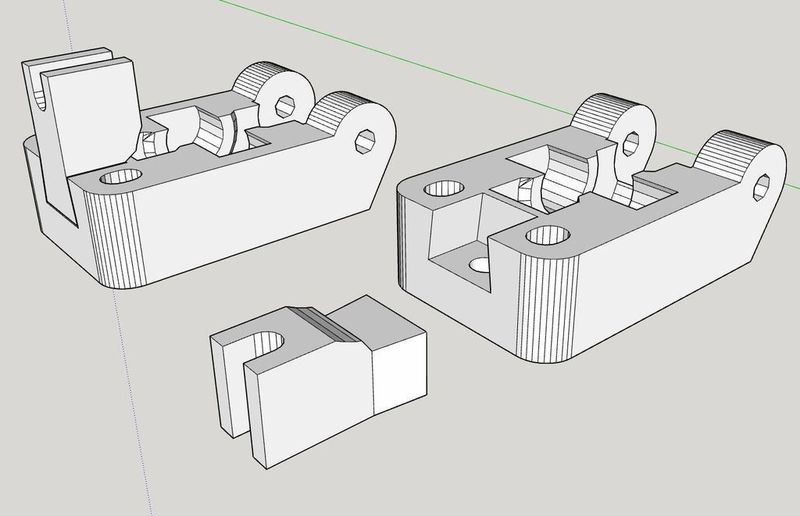

SummaryThis is an extruder idler/guider for a Greg's/Wade's extruder with a replaceable filament guider. I always have issues where the guider wears out after many hours of printing and i have to replace the entire idler. This idler has a removable guider, so that it will be the only thing needing to be replaced when it wears out. You could also print the guider out of Nylon so it lasts longer. The guider slides into the slot and is secured with an appropriate sized wood screw as shown in the picture above.Print SettingsPrinter: MendelMax 1.5Rafts: NoSupports: NoResolution: .2Infill: 40%Notes: I used ABS for both the idler and the guider in the example above. Also Shown with Nylon Guider.

Loading comments...

Loading prints...

Extruder Idler with replaceable guider

likes
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

2 downloadable files:

View 3D
Idler_rem_guider_main.stl
STL Model
60.6 KB
File size
View 3D
Idler_rem_guider.stl
STL Model
8.7 KB
File size
Free download - login required
Downloaded: 32 times
