I noticed these component testers on ebay and had seen cases on here so I ordered one. However the one I received had a wider PCB then the ones pictured and cases on the web (see photo of board above). So I modified an existing case I found on Thingiverse for the wider PCB and also made some changes in the LCD panel opening for improved appearance.. Remix of http://www.thingiverse.com/thing:535595 By procommel.
Instructions: I printed mine in ABS w/.25 LH. No support. I had to sand the ridge off the provided button. Printed on a MendelMax 1.5.
Loading prints...

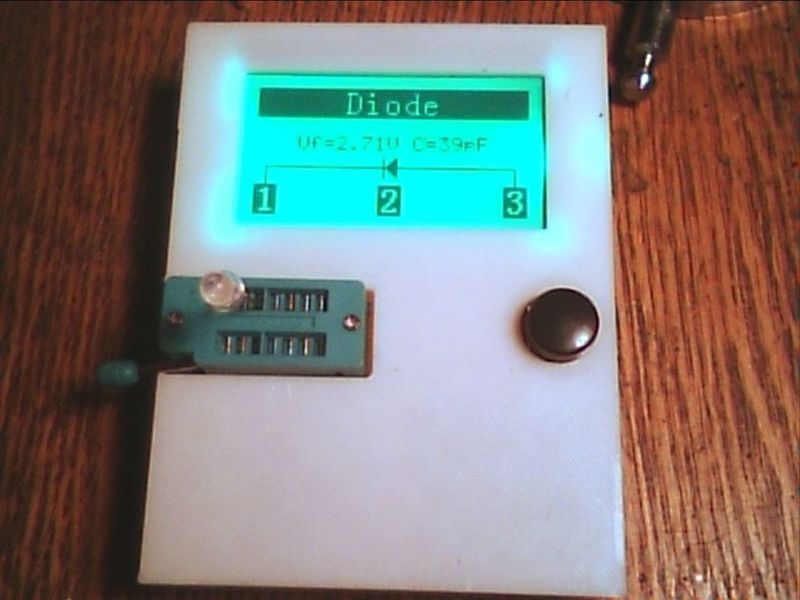

Transistor and component tester case for wider PCB version
Creative Commons Attribution-ShareAlike
You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.
Licensed under CC BY-SA
Files Included
2 downloadable files:
Downloaded: 69 times
