Muse SA-50 T-Amp Case
Free

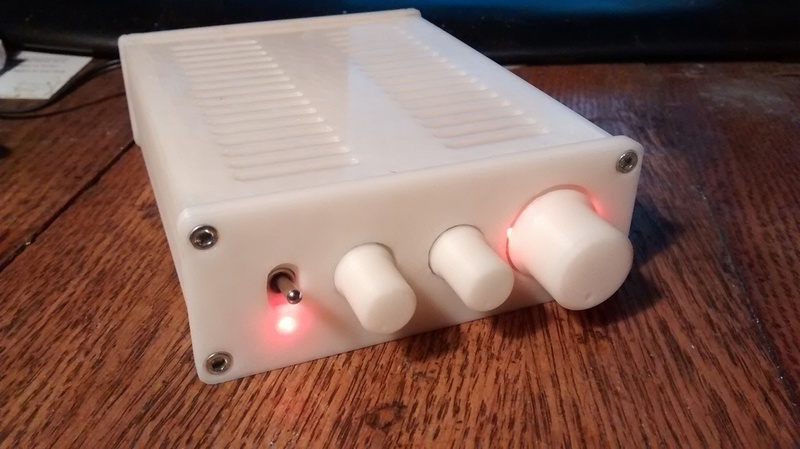

I created this case for an amplifier board that I purchased from ebay. Saved a bit and gave me an excuse to make something. It is the board from a Muse SA-50 T-Amp Digital audio amp (shown above). I purchased it from here: http://www.ebay.com/itm/221851679894 or just search. Instructions: Print one of each STL, and two of the small knobs. I printed in ABS @ .21 LH, 20% infill. I used a .35 nozzle. The 3 mm Screws will self-tap. ABS is recommended. Need well-calibrated printer for minimal/no cleaning or drilling. Used old POT heated with torch to around 550 deg F to make groves in volume, bass/treble knobs. I used banana connectors I had on hand for the speaker connections. I also had to find nuts for the pots because it didn't come with any. Printed on a MendelMax 1.5.

Loading comments...

Loading prints...

Muse SA-50 T-Amp Case

like
1 collection
Creative Commons Attribution-NonCommercial-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format for noncommercial purposes only, with attribution and under the same license.

CC BY-NC-SA Licensed under CC BY-NC-SA
Files Included

6 downloadable files:

View 3D
sa50_Vol_Knob.stl
STL Model
79.8 KB
File size
View 3D
sa50_bass_treb_Knob.stl
STL Model
55.7 KB
File size
View 3D
sa50_Back.stl
STL Model
326.3 KB
File size
View 3D
sa50_shell_top.stl
STL Model
655.4 KB
File size
View 3D
sa50_Face.stl
STL Model
386.0 KB
File size
View 3D
sa50_shell_bottom.stl
STL Model
656.9 KB
File size
Free download - login required
Downloaded: 71 times
