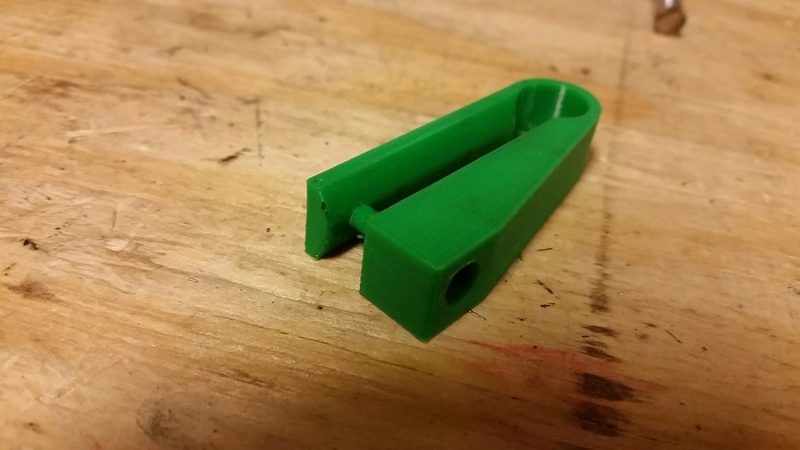

This is a tool designed to help with making your own ak47 or ak74. It works like a pair of tweezers, but has a spud to locate in the AK trunnion holes. On the opposite side is a .250" thru hole designed to be used with a 1/4" transfer punch to mark the intended trunnion rivet hole location. Do not use this with a drill, only with a 1/4" transfer punch. This will allow you to mark all your trunnion holes for drilling and riveting.
.2mm layers
50% infill
Use supports for the boss that locates in the trunnion holes or use the version with a support already added to it.
Loading prints...
AK Trunnion Hole Transfer Tool
