RX122 Atom V1 600TVL Camera Mounts
Free

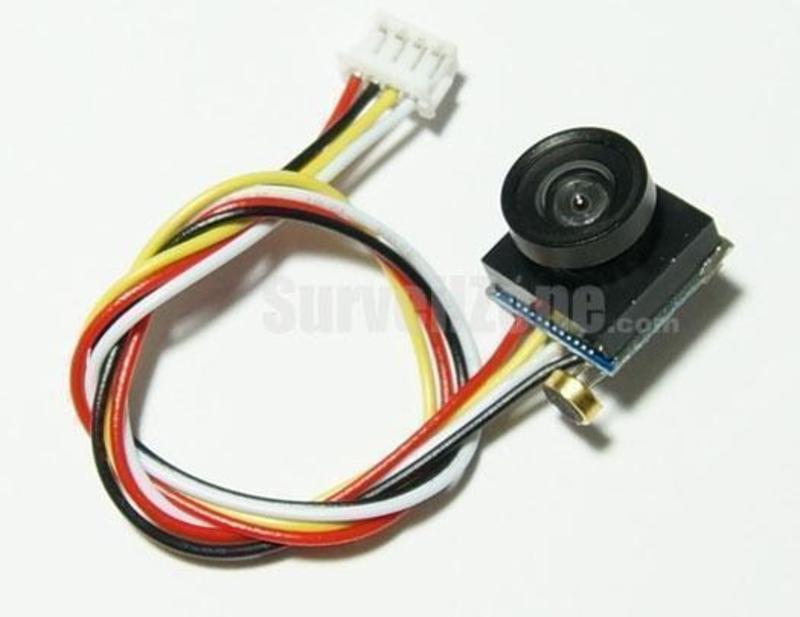

SummaryMounts for this camera from BangGood. These are various mounts that I generated over time and the length at the end of the file name indicate how high the print is. Measure the distance between your top and bottom plate to choose which height and angle of file you want. A perfect print will allow the M2 screws from the kit to thread into the top and bottom holes. If your printer has trouble with small holes (like mine) you will need to drill out the holes before inserting the screws. Be careful not to break a bit! (PLA is tough to drill) I've also included my Buzzer Clip print that allows the buzzer to sit neatly behind the camera secured with a M5 5-to-6mm screw.Print SettingsRafts: NoSupports: NoResolution: 0.3Infill: 100%

Loading comments...

Loading prints...

RX122 Atom V1 600TVL Camera Mounts

like
1 collection
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

10 downloadable files:

View 3D
30deg_12mmCam_23mm.stl
STL Model
~1-5 MB
File size
View 3D
30deg_12mmCam_23_5mm.stl
STL Model
~1-5 MB
File size
View 3D
30deg_12mmCam_24mm.stl
STL Model
~1-5 MB
File size
View 3D
25deg_12mmCam_23mm.stl
STL Model
~1-5 MB
File size
View 3D
25deg_12mmCam_23_5mm.stl
STL Model
~1-5 MB
File size
View 3D
25deg_12mmCam_24mm.stl
STL Model
~1-5 MB
File size
View 3D
20deg_12mmCam_23mm.stl
STL Model
~1-5 MB
File size
View 3D
20deg_12mmCam_23_5mm.stl
STL Model
~1-5 MB
File size
View 3D
20deg_12mmCam_24mm.stl
STL Model
~1-5 MB
File size
View 3D
Buzzer_Clip_3.stl
STL Model
~1-5 MB
File size
Free download - login required
Downloaded: 47 times
