RX122 Atom V1 Parts Multipack!
Free

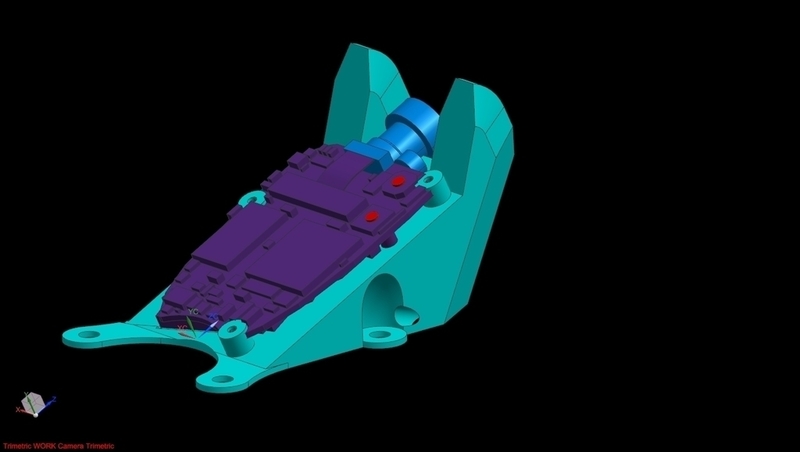

SummaryHere is a collection of 3D prints that I have used on my RX122 Atom at one point or another. Included are some prints that help secure the battery plug for the RotorX PDB and a mount for a naked 808 camera to sit on top of the frame. The 808 mount will work for frames that use a SMA bulkhead connector as well as those without (direct solder antennas). The RGB LED that I mount to the back of my frame can be found here. The battery holder goes on the bottom of the frame and allows you to add a battery strap that goes from front to back. It also moves the battery down enough that it won't press against the bottom bolts. (I didn't like the idea of a bolt pounding into the cell)

Loading comments...

Loading prints...

RX122 Atom V1 Parts Multipack!

like
1 collection
Creative Commons Attribution-NonCommercial-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format for noncommercial purposes only, with attribution and under the same license.

CC BY-NC-SA Licensed under CC BY-NC-SA
Files Included

11 downloadable files:

View 3D
JST_Female_Clamp.stl
STL Model
~1-5 MB
File size
View 3D
JST_Female_Clamp_LED.stl
STL Model
~1-5 MB
File size
View 3D
XT30_Female_Clamp_LED.stl
STL Model
~1-5 MB
File size
View 3D
808_Mount_15deg.stl
STL Model
~1-5 MB
File size
View 3D
XT30_Female_Clamp.stl
STL Model
~1-5 MB
File size
View 3D
Landing_Leg_02.stl
STL Model
~1-5 MB
File size
View 3D
Buzzer_Clip_2.stl
STL Model
~1-5 MB
File size
View 3D
Buzzer_Clip.stl
STL Model
~1-5 MB
File size
View 3D
Battery_Holder.stl
STL Model
~1-5 MB
File size
View 3D
Antenna_Sweep_Mid_01.stl
STL Model
~1-5 MB
File size
View 3D
Antenna_Sweep_Mid_02.stl
STL Model
~1-5 MB
File size
