Crazy gearbox 10:1
Free

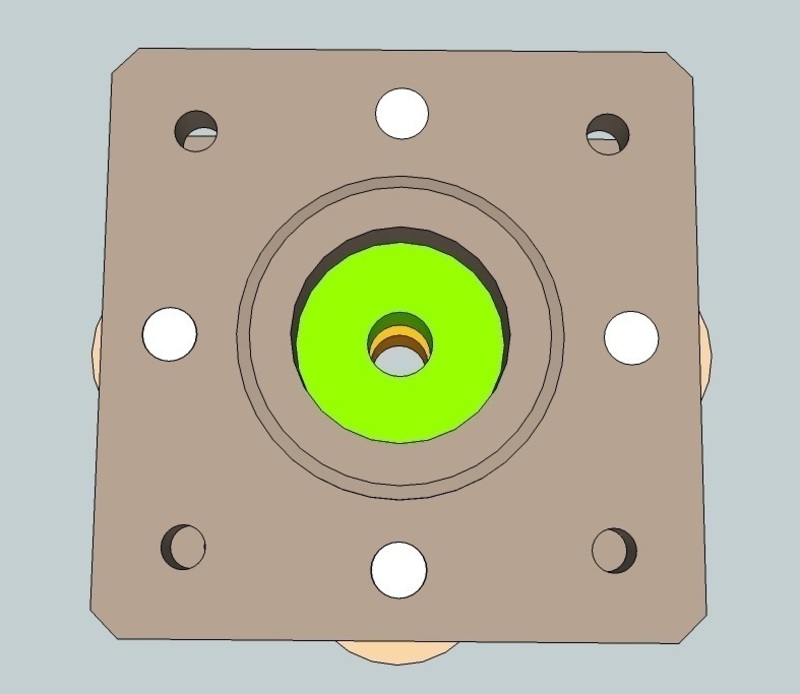

SummaryI was obsessed with the size in 31mm and out 42mm of nema17 motor it's very small to make a gearbox, f****ing :P Compact Simply Suitable material Compatible with a variety of Bowden Efficiency… it's just an idea Using Pulley and Rubber band, Material: plastic or aluminium 1x pulley input 1x pulley output 4x plulley 2 stages 5 rubber band < 3mm (length, don't know :p) 1x bearing 625zz Ratio: 1.51:1 for one stage Totall: 10:1 with 5 stages, (nice :P) Dimensions: 44x44x26 Please give me your opinion! Fun!

Loading comments...

Loading prints...

Crazy gearbox 10:1

likes
0 collections
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

6 downloadable files:

View 3D
PULLEY_OUTPUT.stl
STL Model
~1-5 MB
File size
View 3D
4PULLEY.stl
STL Model
~1-5 MB
File size
View 3D
SHAFT.stl
STL Model
~1-5 MB
File size
View 3D
TOP.stl
STL Model
~1-5 MB
File size
View 3D
BOTTOM.stl
STL Model
~1-5 MB
File size
View 3D
PULLEY_INPUT.stl
STL Model
~1-5 MB
File size
Free download - login required
Downloaded: 52 times
