Lazier Susan - Low Profile, Snap-Together Swivel
Free

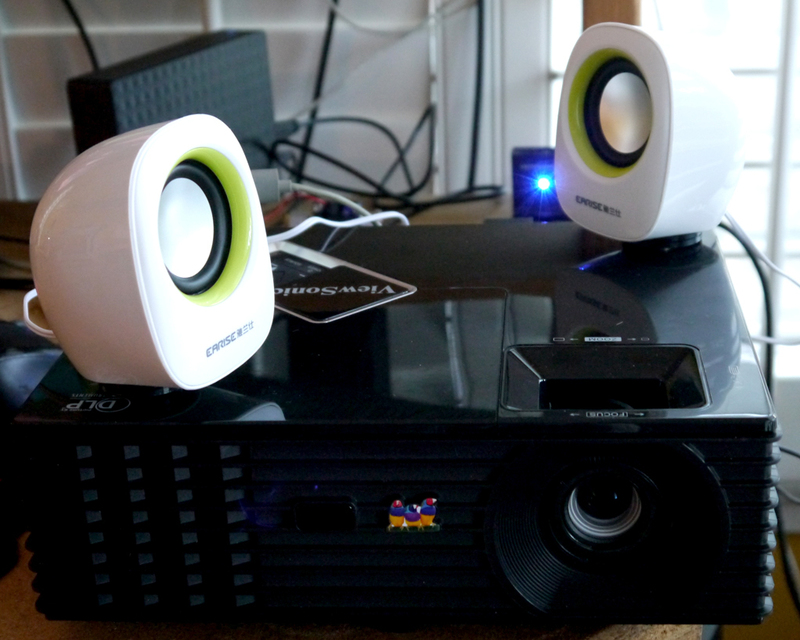

SummaryUpdate: 9-30-15 I designed some printed-in options for the swivel. There is a snap-in wedge and a rod that you can melt into a capture rivet if that works better for you. This is part of my personal projector mod handle, which will help make this a portable, potentially battery powered HD projection setup that could go anywhere in a backpack. Simple swivel for speakers or whatever. Might also be cool to scale up to make a lazy susan-style tablet base. Just print both sides and sandwich together with a small length of filament or plastic rod. Scaled up, metal bolts and locknuts could be used for strength. At the current scale I wouldn't trust more than a pound or two of weight on this. The height is about 5.5mm (7mm including both sides Scotch thick tape.) Latest update (snap version): 6.7mm (8.2mm)Print SettingsRafts: NoSupports: NoResolution: .2Infill: 30% or 100%Notes: Use the expensive double sided tape and it will hold for a good while. Hot glue is also an interesting option for more temporary use. I use 3mm filament or 1/8th" plastic rod to make rivets with a woodburning knife or soldering iron. If your filament rivet is sticking up a bit, consider using a hole punch on the double sided tape where the shaft will be to allow it to spin freely.

Loading comments...

Loading prints...

Lazier Susan - Low Profile, Snap-Together Swivel

likes
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

8 downloadable files:

View 3D
Wide_Wedge_Swivel_Top.STL
STL Model
318.8 KB
File size
View 3D
Wide_Wedge_Swivel_Bottom.STL
STL Model
368.1 KB
File size
View 3D
Wedge_Swivel_Top.STL
STL Model
318.8 KB
File size
View 3D
Wedge_Swivel_Bottom.STL
STL Model
403.2 KB
File size
View 3D
2Part_Swivel_Top.STL
STL Model
318.8 KB
File size
View 3D
2Part_Swivel_Bottom.STL
STL Model
318.8 KB
File size
View 3D
Swivel_Top.STL
STL Model
325.1 KB
File size
View 3D
Swivel_Bottom.STL
STL Model
412.6 KB
File size
Free download - login required
Downloaded: 25 times
