Handy Handheld Camera Mount
Free

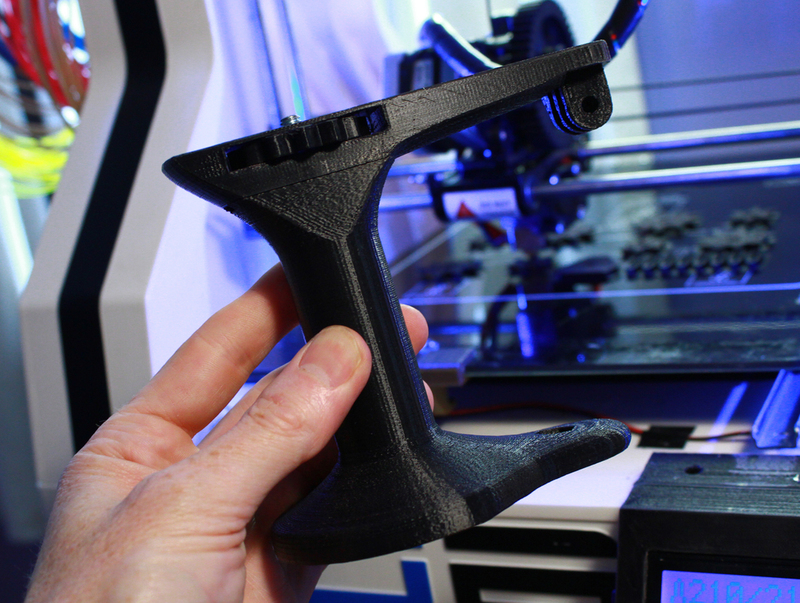

SummaryThis is a handy holder for small video or still cameras that allows you to set the camera down on any surface or tripod mount. There is an optional Gopro mount for if you want to catch something in slow motion simultaneously. It features trapped nut and bolt design and is easy to assemble. The indent at the bottom accomodates different sized lens caps. Just print your own and superglue it in. I've included a remix of a 49mm lens cap holder, which might work for you. Update: Added a version of the handle that is 1/4" taller for larger hands.InstructionsPrint top and bottom with support. I print support at 10% infill - it pops out with just a bit of exacto knife work. Your results may vary. The top and bottom fit together pretty snugly, but you will probably want to use ca glue (superglue) to make sure it doesn't come apart and destroy your camera. You will need a standard 1/4-20 nut for the bottom tripod mount and a 1/4-20 bolt between 1/4" and 1/2" long where the main camera attaches. You may have to trim the bolt so your camera seats properly. The knurled knob stays in place when you push in the 1/4" bolt from underneath. Make sure it fits properly and turns smoothly before you glue the top and bottom together.

Loading comments...

Loading prints...

Handy Handheld Camera Mount

likes
1 collection
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

6 downloadable files:

View 3D
HandleTop.STL
STL Model
88.9 KB
File size
View 3D
HandleBottom.STL
STL Model
226.1 KB
File size
View 3D
Knob.STL
STL Model
119.5 KB
File size
View 3D
HandleTop_With_Gopro.STL
STL Model
127.9 KB
File size
View 3D
Lenscap_Holder_49mm.STL
STL Model
51.1 KB
File size
View 3D
Camera_Handle_BottomV2_Taller.STL
STL Model
226.1 KB
File size
